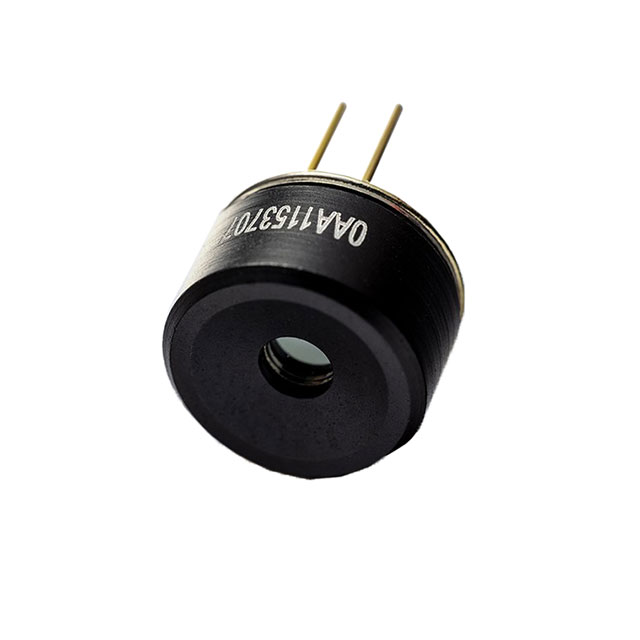

MLX90641KSF-BCB-000-TU

Active

Melexis Technologies NV

SENS TEMP 16X12 60FOV 125C TO39

Search across all available documentation for this part.

Active

Melexis Technologies NV

SENS TEMP 16X12 60FOV 125C TO39

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90641KSF-BCB-000-TU

Features	Programmable Resolution
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C
Package / Case	TO-39-4 Metal Can
Sensing Temperature - Local [Max]	125 °C
Sensing Temperature - Local [Min]	-40 °C
Sensor Type	Infrared (IR), Digital
Supplier Device Package	TO-39
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Mounting Type	Supplier Device Package	Features	Package / Case	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type
Melexis Technologies NV MLX90641ESF-BAB-000-SP	Through Hole	TO-39	Thermal Array	TO-205AD TO-39-4 Modified Metal Can
Melexis Technologies NV MLX90641ESF-BCA-000-TU	Through Hole	TO-39	Programmable Resolution	TO-39-4 Metal Can	-40 °C	85 °C	I2C	3.6 V	3 V	85 °C	-40 °C	Digital Infrared (IR)
Melexis Technologies NV MLX90641ESF-BAB-000-TU	Through Hole	TO-39	Thermal Array	TO-205AD TO-39-4 Modified Metal Can
Melexis Technologies NV MLX90641KSF-BAA-000-SP	Through Hole	TO-39	Thermal Array	TO-39-4 Metal Can
Melexis Technologies NV MLX90641ESF-BAA-000-SP	Through Hole	TO-39	Thermal Array	TO-39-4 Metal Can
Melexis Technologies NV MLX90641KSF-BCA-000-SP	Through Hole	TO-39	Programmable Resolution	TO-39-4 Metal Can	-40 °C	125 °C	I2C	3.6 V	3 V	125 °C	-40 °C	Digital Infrared (IR)
Melexis Technologies NV MLX90641KSF-BCB-000-TU	Through Hole	TO-39	Programmable Resolution	TO-39-4 Metal Can	-40 °C	125 °C	I2C	3.6 V	3 V	125 °C	-40 °C	Digital Infrared (IR)
Melexis Technologies NV MLX90641ESF-BCB-000-SP	Through Hole	TO-39	Programmable Resolution	TO-39-4 Metal Can	-40 °C	85 °C	I2C	3.6 V	3 V	85 °C	-40 °C	Digital Infrared (IR)
Melexis Technologies NV MLX90641KSF-BAA-000-TU	Through Hole	TO-39	Thermal Array	TO-39-4 Metal Can

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Temperature Sensor Digital, Infrared (IR) -40°C ~ 125°C TO-39
