54050C
ActiveMurata Power Solutions Inc.

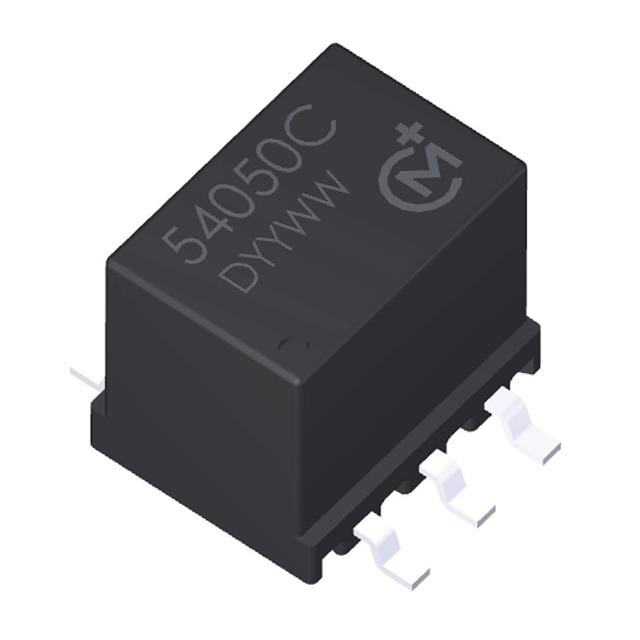

CURR SENSE XFMR 1:1:50 15A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
54050C
ActiveMurata Power Solutions Inc.
CURR SENSE XFMR 1:1:50 15A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 54050C |
|---|---|
| DC Resistance (DCR) [custom] | 7 mOhm |
| DC Resistance (DCR) [custom] | 500 mOhm |
| Frequency Range [Max] | 500 kHz |
| Frequency Range [Min] | 50 kHz |
| Height - Seated (Max) [Max] [z] | 8.2 mm |
| Height - Seated (Max) [Max] [z] | 0.323 in |
| Inductance | 3.8 mH |
| Mounting Type | Surface Mount |
| Size / Dimension [x] | 9 mm |
| Size / Dimension [x] | 0.354 " |
| Size / Dimension [y] | 0.425 " |
| Size / Dimension [y] | 10.8 mm |
| Termination Style | Gull Wing |
| Turns Ratio - Primary:Secondary [custom] | 50 |
| Turns Ratio - Primary:Secondary [custom] | 1 |
| Turns Ratio - Primary:Secondary [custom] | 1 |
| Type | Invasive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.12 | |
| 5 | $ 2.04 | |||
| 10 | $ 1.96 | |||
| 25 | $ 1.77 | |||
| 50 | $ 1.52 | |||
| 100 | $ 1.38 | |||
| Digi-Reel® | 1 | $ 2.12 | ||
| 5 | $ 2.04 | |||
| 10 | $ 1.96 | |||
| 25 | $ 1.77 | |||
| 50 | $ 1.52 | |||
| 100 | $ 1.38 | |||
| Tape & Reel (TR) | 35 | $ 2.12 | ||
| 210 | $ 1.95 | |||
| 450 | $ 1.22 | |||
| 900 | $ 1.10 | |||
| 1350 | $ 0.99 | |||
Description
General part information
54 Series
1:1:50 Current Sense Transformer 50kHz ~ 500kHz 7mOhm Primary, 500mOhm Secondary 3.8 mH Surface Mount
