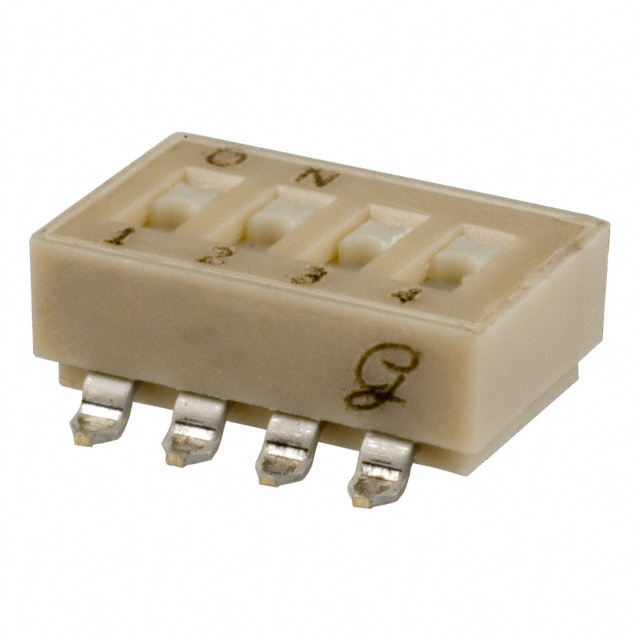

90HBW04PT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90HBW04PT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90HBW04PT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Features | Tape Seal |
| Length | 11.94 mm |
| Length | 0.47 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.90 | |
| 10 | $ 4.69 | |||
| 37 | $ 4.28 | |||
| 111 | $ 3.71 | |||
| 259 | $ 3.37 | |||
| 518 | $ 3.12 | |||
| 1036 | $ 2.90 | |||
| 2516 | $ 2.63 | |||
Description
General part information
90HBW04 Series
Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
