0291-0-15-01-16-27-10-0

Active

Mill-Max Manufacturing Corp.

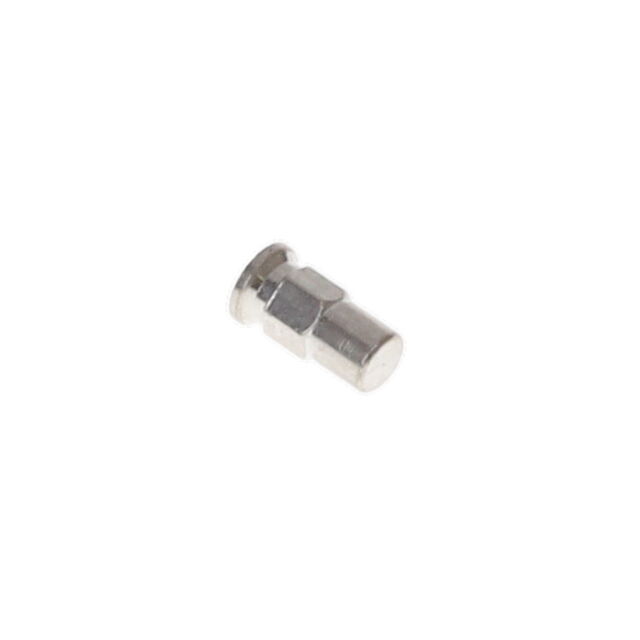

CONN PIN RCPT .022-.034 HEX

Deep-Dive with AI

Search across all available documentation for this part.

0291-0-15-01-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 HEX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0291-0-15-01-16-27-10-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.01 mm
Flange Diameter [diameter]	0.079 in
Length - Overall [x]	3.68 mm
Length - Overall [x]	0.145 in
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	3.05 mm
Socket Depth	0.12 in
Tail Type	No Tail
Termination	Press-Fit, Hex

0291-0 Series

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0291-0-15-80-16-14-10-0	1.7 mm	0.067 "	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	Gold	10 Áin	0.25 Ám	3.05 mm	0.12 in	Press-Fit Hex	0.051 in	1.3 mm	3.68 mm	0.145 in	0.64 mm	0.025 in	Beryllium Copper	-55 °C	125 °C	2.01 mm	0.079 in
Mill-Max Manufacturing Corp. 0291-0-15-01-16-14-10-0	1.7 mm	0.067 "	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	Gold	10 Áin	0.25 Ám	3.05 mm	0.12 in	Press-Fit Hex	0.051 in	1.3 mm	3.68 mm	0.145 in	0.64 mm	0.025 in	Beryllium Copper	-55 °C	125 °C	2.01 mm	0.079 in
Mill-Max Manufacturing Corp. 0291-0-15-01-16-27-10-0	1.7 mm	0.067 "	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	Gold	30 Áin	0.76 Ám	3.05 mm	0.12 in	Press-Fit Hex	0.051 in	1.3 mm	3.68 mm	0.145 in	0.64 mm	0.025 in	Beryllium Copper	-55 °C	125 °C	2.01 mm	0.079 in
Mill-Max Manufacturing Corp. 0291-0-15-80-16-80-10-0	1.7 mm	0.067 "	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	Tin	200 Áin	5.08 Ám	3.05 mm	0.12 in	Press-Fit Hex	0.051 in	1.3 mm	3.68 mm	0.145 in	0.64 mm	0.025 in	Beryllium Copper	-55 °C	125 °C	2.01 mm	0.079 in
Mill-Max Manufacturing Corp. 0291-0-15-01-16-01-10-0	1.7 mm	0.067 "	0.86 mm	0.034 "	0.56 mm	0.022 "	No Tail	Tin-Lead	200 Áin	5.08 Ám	3.05 mm	0.12 in	Press-Fit Hex	0.051 in	1.3 mm	3.68 mm	0.145 in	0.64 mm	0.025 in	Beryllium Copper	-55 °C	125 °C	2.01 mm	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.61
		10	$ 1.23
		25	$ 1.11
		50	$ 1.02
		100	$ 0.94
		250	$ 0.85
		500	$ 0.79
		1000	$ 0.74
		2500	$ 0.67

Description

General part information

0291-0 Series

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Press-Fit, Hex

Documents

Technical documentation and resources

No documents available
