09320403001

Active

HARTING Technology Group

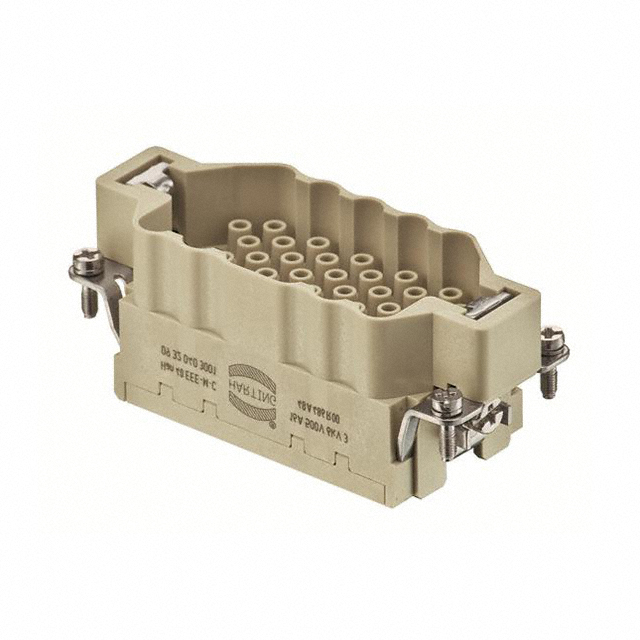

HEAVY DUTY CONNECTOR, HAN EEE SERIES, INSERT, 40 CONTACTS, 16B, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EEE SERIES, INSERT, 40 CONTACTS, 16B, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09320403001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	40+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Crimp
Voltage Rating	500 V

Part	Current Rating (Amps)	Termination Style	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Gender	Housing Material	Voltage Rating	Contact Type	Color	Number of Positions	Size
HARTING Technology Group 09320403001	16 A	Crimp	UL94 V-0	125 °C	-40 °C	Insert without Contacts	Male	Polycarbonate (PC)	500 V	Han®	Gray	40+Ground	16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 40+Ground Position Crimp
