PXPPNP12FBF04ACL030PVC

Active

BULGIN LIMITED

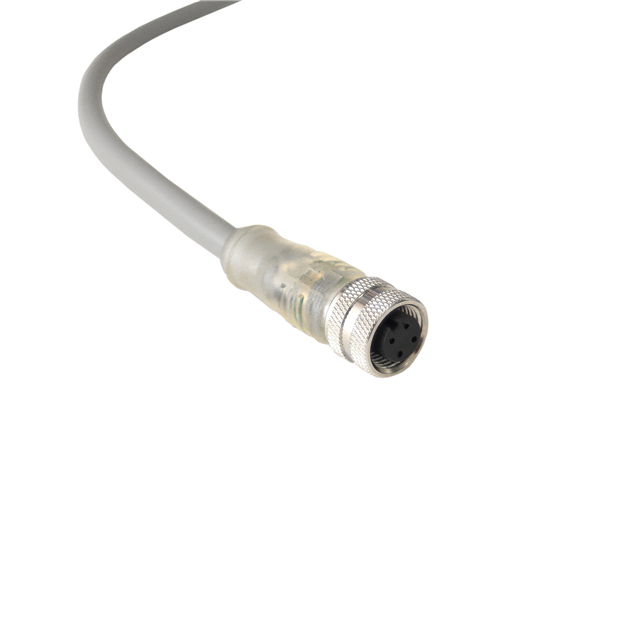

SENSOR CABLE, M12 RECEPTACLE, FREE END, 4 POSITIONS, 3 M, 9.8 FT, BUCCANEER M12 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PXPPNP12FBF04ACL030PVC

Active

BULGIN LIMITED

SENSOR CABLE, M12 RECEPTACLE, FREE END, 4 POSITIONS, 3 M, 9.8 FT, BUCCANEER M12 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPNP12FBF04ACL030PVC

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	9.84 ft
Length [x]	3 m
Shielding	Unshielded
Usage	Industrial Environments

PXPPNP Series

Part	1st Connector Number of Positions	Ingress Protection	1st Connector Number of Positions Loaded	Length [x]	Length [x]	Shielding	Color	Usage	1st Connector Mounting Type	1st Connector Orientation	Cable Material	Cable Type	1st Connector Gender	Assembly Configuration	1st Connector Shell Size - Insert	2nd Connector Type	1st Connector Type	2nd Connector Shell Size - Insert	2nd Connector Gender	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	2nd Connector Mounting Type
BULGIN LIMITED PXPPNP12FBF04ACL030PVC	4	IP67 - Dust Tight Waterproof	All	9.84 ft	3 m	Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M12	Wire Leads	Plug
BULGIN LIMITED PXPPNP08RAF04ACL075PVC	4	IP67 - Dust Tight Waterproof	All	24.6 ft	7.5 m	Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M8	Wire Leads	Plug Right Angle
BULGIN LIMITED PXPPNP12FBF04AFI003PUR	4	IP67 - Dust Tight Waterproof	All			Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyurethane (PUR)	Round	Male Pins	Standard	M12	Plug	Receptacle	M12	Female Sockets	4	All	Free Hanging (In-Line)
BULGIN LIMITED PXPPNP12RAF04ACL100PVC	4	IP67 - Dust Tight Waterproof	All			Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M12	Wire Leads	Plug Right Angle
BULGIN LIMITED PXPPNP12RAF04ACL030PVC	4	IP67 - Dust Tight Waterproof	All	9.84 ft	3 m	Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M12	Wire Leads	Plug Right Angle
BULGIN LIMITED PXPPNP08FIM04ACL030PVC	4	IP67 - Dust Tight Waterproof	All	9.84 ft	3 m	Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Male Pins	Standard	M8	Wire Leads	Receptacle
BULGIN LIMITED PXPPNP12RAF04ACL010PVC	4	IP67 - Dust Tight Waterproof	All	3.28 ft	1 m	Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M12	Wire Leads	Plug Right Angle
BULGIN LIMITED PXPPNP12FBF04AFI020PUR	4	IP67 - Dust Tight Waterproof	All	6.56 ft	2 m	Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyurethane (PUR)	Round	Male Pins	Standard	M12	Plug	Receptacle	M12	Female Sockets	4	All	Free Hanging (In-Line)
BULGIN LIMITED PXPPNP12FBF04ACL050PVC	4	IP67 - Dust Tight Waterproof	All			Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M12	Wire Leads	Plug
BULGIN LIMITED PXPPNP12RAF04ACL050PVC	4	IP67 - Dust Tight Waterproof	All			Unshielded	Black	Industrial Environments	Free Hanging (In-Line)	A	Polyvinyl Chloride (PVC)	Round	Female Sockets	Standard	M12	Wire Leads	Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.63
		10	$ 12.97
		25	$ 32.26
		50	$ 30.72
		100	$ 29.25
		250	$ 27.42
Newark	Each	25	$ 33.17
		50	$ 31.52
		100	$ 30.49
		250	$ 28.84
		500	$ 28.23

Description

General part information

PXPPNP Series

Circular Cable Assembly Unshielded 9.84' (3.00m)

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
