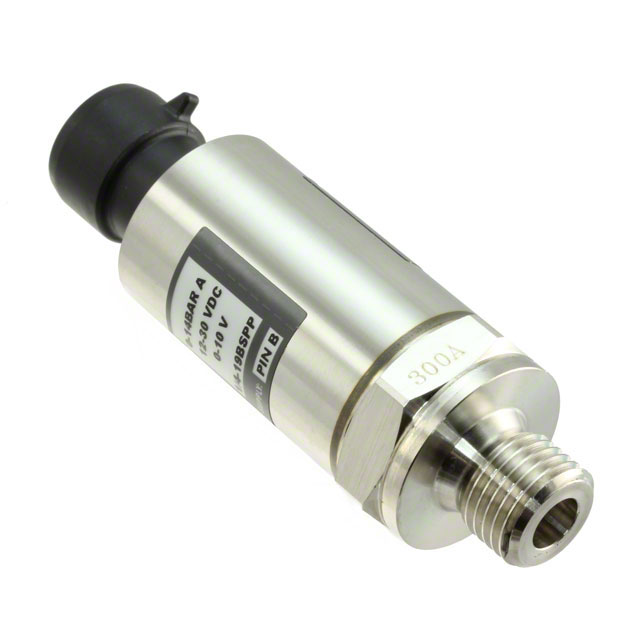

U5374-000002-014BA

Obsolete

TE Connectivity Measurement Specialties

SENSOR

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Features	Accuracy	Output Type	Port Style	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Port Size	Port Size	Output [Min]	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties U5374-000002-014BA	Connector	Temperature Compensated	0.1 %	Analog Voltage	Threaded	203.05 PSI	1400 kPa	125 °C	-40 °C	Cylinder	BSPP Male	6.35 mm	0 mV	10 V	4200 kPa	609.16 PSI	12 V	30 VDC	Industrial Automation
TE Connectivity Measurement Specialties U5374-000002-002BA	Connector	Temperature Compensated	0.1 %	Analog Voltage	Threaded	29.01 PSI	2 bar	125 °C	-40 °C	Cylinder	BSPP Male	6.35 mm	0 mV	10 V			12 V	30 VDC	Industrial Automation	87.02 PSI	600 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR

Technical documentation and resources

No documents available
