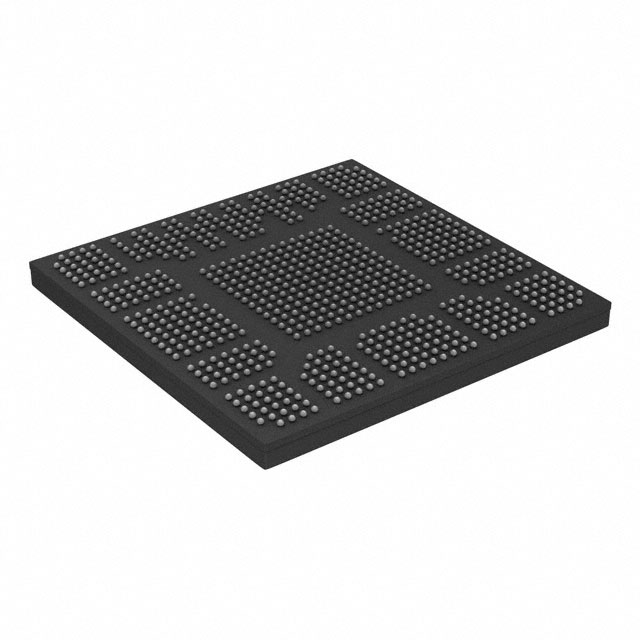

LFE5U-85F-6BG756C

Active

LATTICE SEMICONDUCTOR

FPGA LATTICEECP5 FAMILY 84000 CELLS 40NM TECHNOLOGY 1.1V 756-PIN CABGA TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSolving Intellegence, Vision, Connectivity Challenges at the Edge with ECP5 FPGAs Datasheet

LFE5U-85F-6BG756C

Active

LATTICE SEMICONDUCTOR

FPGA LATTICEECP5 FAMILY 84000 CELLS 40NM TECHNOLOGY 1.1V 756-PIN CABGA TRAY

Deep-Dive with AI

DocumentsSolving Intellegence, Vision, Connectivity Challenges at the Edge with ECP5 FPGAs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFE5U-85F-6BG756C

Mounting Type	Surface Mount
Number of I/O	365
Number of LABs/CLBs	21000 LABs/CLBs
Number of Logic Elements/Cells	84000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	756-FBGA
Supplier Device Package	756-CABGA (27x27)
Total RAM Bits	3833856
Voltage - Supply [Max]	1.155 V
Voltage - Supply [Min]	1.045 V

LFE5U-85 Series

Part	Number of Logic Elements/Cells	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of I/O	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Number of LABs/CLBs	Total RAM Bits
LATTICE SEMICONDUCTOR LFE5U-85F-6BG381C	84000	1.155 V	1.045 V	205	Surface Mount	0 °C	85 °C	381-CABGA (17x17)	381-FBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-8BG756I	84000	1.155 V	1.045 V	365	Surface Mount	-40 C	100 °C	756-CABGA (27x27)	756-FBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-7BG554I	84000	1.155 V	1.045 V	259	Surface Mount	-40 C	100 °C	554-CABGA (23x23)	554-FBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-7MG285I	84000	1.155 V	1.045 V	118	Surface Mount	-40 C	100 °C	285-CSFBGA (10x10)	285-LFBGA CSPBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-7BG756I	84000	1.155 V	1.045 V	365	Surface Mount	-40 C	100 °C	756-CABGA (27x27)	756-FBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-8MG285I	84000	1.155 V	1.045 V	118	Surface Mount	-40 C	100 °C	285-CSFBGA (10x10)	285-LFBGA CSPBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-6BG756C	84000	1.155 V	1.045 V	365	Surface Mount	0 °C	85 °C	756-CABGA (27x27)	756-FBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-6MG285C	84000	1.155 V	1.045 V	118	Surface Mount	0 °C	85 °C	285-CSFBGA (10x10)	285-LFBGA CSPBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-7BG756C	84000	1.155 V	1.045 V	365	Surface Mount	0 °C	85 °C	756-CABGA (27x27)	756-FBGA	21000 LABs/CLBs	3833856
LATTICE SEMICONDUCTOR LFE5U-85F-8BG554I	84000	1.155 V	1.045 V	259	Surface Mount	-40 C	100 °C	554-CABGA (23x23)	554-FBGA	21000 LABs/CLBs	3833856

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 80.58
		40	$ 79.29
Digikey	Tray	40	$ 81.30
Newark	Each	25	$ 84.89
		50	$ 83.68
		100	$ 78.87

Description

General part information

LFE5U-85 Series

ECP5 Field Programmable Gate Array (FPGA) IC 365 3833856 84000 756-FBGA
