C3PES-2006G

Active

CW Industries

IDC CABLE - CPC20S/AE20G/CCE20S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CPC20S/AE20G/CCE20S

Technical Specifications

Parameters and characteristics for this part

Part	Usage	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Contact Finish	Cable Termination	Color	Length	Length	Length
CW Industries C3PES-2618G	Board In	0.05 "	1.27 mm	0.05 in	1.27 mm	457.2 mm	1.5 ft	2.54 µm	100 µin	Unshielded	26	Tin	IDC
CW Industries C3PES-2036M	Board In	0.05 "	1.27 mm	0.05 in	1.27 mm	914.4 mm	3 ft	2.54 µm	100 µin	Unshielded	20	Tin	IDC	Multiple Ribbon
CW Industries C3PES-2606M	Board In	0.05 "	1.27 mm	0.05 in	1.27 mm			2.54 µm	100 µin	Unshielded	26	Tin	IDC	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3PES-2618M	Board In	0.05 "	1.27 mm	0.05 in	1.27 mm	457.2 mm	1.5 ft	2.54 µm	100 µin	Unshielded	26	Tin	IDC	Multiple Ribbon
CW Industries C3PES-2006G	Board In	0.05 "	1.27 mm	0.05 in	1.27 mm			2.54 µm	100 µin	Unshielded	20	Tin	IDC		152.4 mm	6 "	0.5 '
CW Industries C3PES-2636M	Board In	0.05 "	1.27 mm	0.05 in	1.27 mm	914.4 mm	3 ft	2.54 µm	100 µin	Unshielded	26	Tin	IDC	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

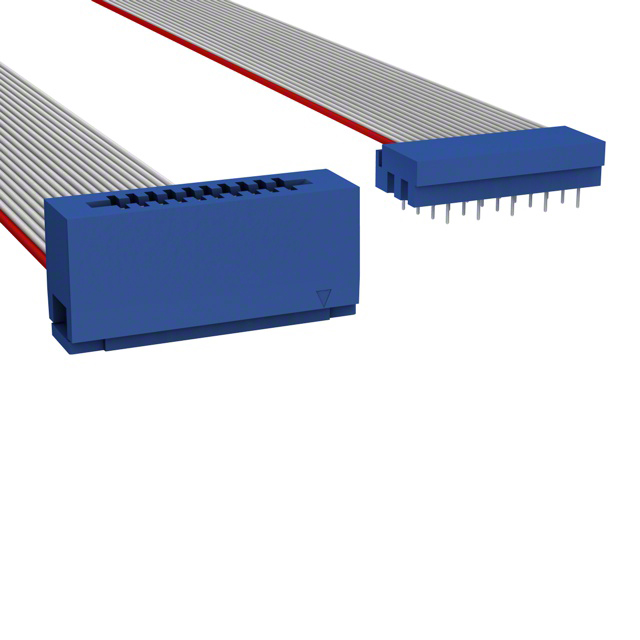

20 Position Cable Assembly Rectangular Card Edge to PCB 0.500' (152.40mm, 6.00")
