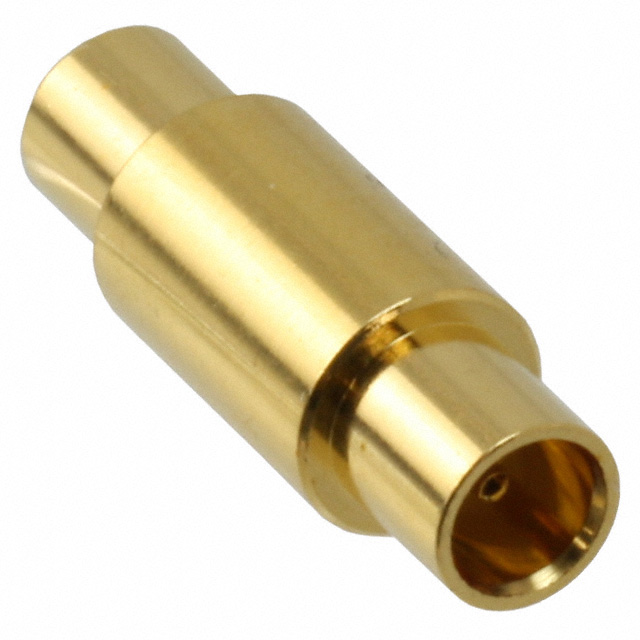

252169-75

Active

Amphenol RF

CONN ADAPT JACK-JACK MCX 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK MCX 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	252169-75

Adapter Series	MCX to MCX
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert To (Adapter End)	Female Socket, MCX Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2.5 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Center Contact Material	Center Gender	Body Material	Style	Mounting Type	Fastening Type	Body Finish	Center Contact Plating	Impedance	Adapter Type	Convert To (Adapter End)	Dielectric Material	Conversion Type	Frequency - Max [Max]	Adapter Series
Amphenol RF 252169-75	Beryllium Copper	Female to Female	Brass	Straight	Free Hanging (In-Line)	Snap-On	Gold	Gold	75 Ohms	Jack to Jack	Female Socket MCX Jack	Polytetrafluoroethylene (PTFE)	Same Series	2.5 GHz	MCX to MCX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector MCX Jack, Female Socket To MCX Jack, Female Socket 75 Ohms
