VIBLSD1-S24-S24-DIP

CUI Inc.

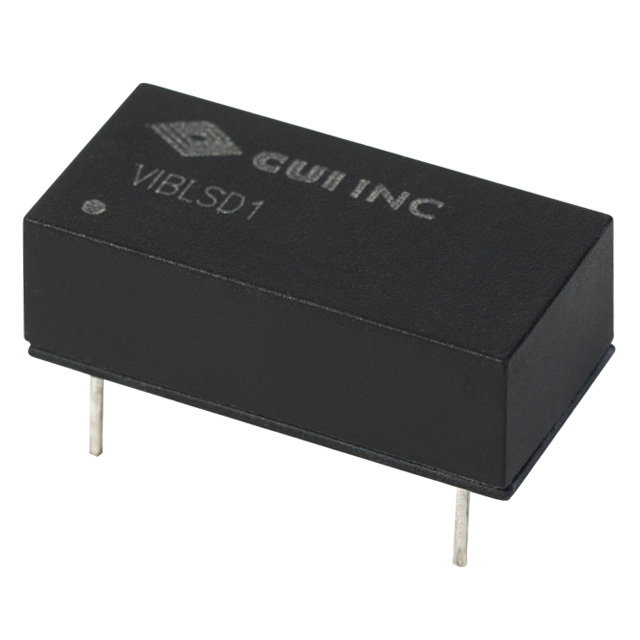

MODULE DC-DC 24VIN 1-OUT 24V 0.042A 1W 5-PIN DIP MODULE

Deep-Dive with AI

Search across all available documentation for this part.

VIBLSD1-S24-S24-DIP

CUI Inc.

MODULE DC-DC 24VIN 1-OUT 24V 0.042A 1W 5-PIN DIP MODULE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VIBLSD1-S24-S24-DIP

Applications	ITE (Commercial)
Current - Output (Max) [Max]	42 mA
Efficiency	68 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module, 5 Leads
Size / Dimension [x]	20.1 mm
Size / Dimension [x]	0.79 in
Size / Dimension [y]	9.9 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	25.2 V
Voltage - Input (Min) [Min]	22.8 V
Voltage - Isolation	1000 V
Voltage - Output 1	24 V

VIBLSD1 Series

Part	Number of Outputs	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Applications	Current - Output (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]
CUI Inc. VIBLSD1-S12-S5-DIP	1	5 V	85 °C	-40 °C	SCP	Through Hole	69 %	11.4 V	1000 V	Isolated Module	ITE (Commercial)	150 mA	14-DIP Module	0.8 "	6.5 mm	20.4 mm	0.26 "	0.39 "	10 mm	12.6 V
CUI Inc. VIBLSD1-S5-S5-SIP	1	5 V	85 °C	-40 °C	SCP	Through Hole	69 %	4.75 V	1000 V	Isolated Module	ITE (Commercial)	150 mA	6-SIP Module 4 Leads	0.77 in	10.2 mm	19.6 mm	0.4 "	0.24 "	6 mm	5.25 V
CUI Inc. VIBLSD1-S24-S24-DIP	1	24 V	85 °C	-40 °C	SCP	Through Hole	68 %	22.8 V	1000 V	Isolated Module	ITE (Commercial)	42 mA	14-DIP Module 5 Leads	0.79 in	7.2 mm	20.1 mm	0.28 "	0.39 "	9.9 mm	25.2 V
CUI Inc. VIBLSD1-S24-S5-SIP	1	5 V	85 °C	-40 °C	SCP	Through Hole	70 %	22.8 V	1000 V	Isolated Module	ITE (Commercial)	200 mA	6-SIP Module 4 Leads	0.77 in	10.2 mm	19.6 mm	0.4 "	0.24 "	6 mm	25.2 V
CUI Inc. VIBLSD1-S12-S15-DIP	1	15 V	85 °C	-40 °C	SCP	Through Hole	72 %	11.4 V	1000 V	Isolated Module	ITE (Commercial)	67 mA	14-DIP Module	0.8 "	6.5 mm	20.4 mm	0.26 "	0.39 "	10 mm	12.6 V
CUI Inc. VIBLSD1-S5-S12-SIP	1	12 V	85 °C	-40 °C	SCP	Through Hole	71 %	4.75 V	1000 V	Isolated Module	ITE (Commercial)	83 mA	6-SIP Module 4 Leads	0.77 in	10.2 mm	19.6 mm	0.4 "	0.24 "	6 mm	5.25 V
CUI Inc. VIBLSD1-S12-S9-SIP	1	9 V	85 °C	-40 °C	SCP	Through Hole	72 %	11.4 V	1000 V	Isolated Module	ITE (Commercial)		6-SIP Module 4 Leads	0.77 in	10 mm	19.6 mm	0.39 in	0.24 "	6 mm	12.6 V
CUI Inc. VIBLSD1-S24-S12-SIP	1	12 V	85 °C	-40 °C	SCP	Through Hole	73 %	22.8 V	1000 V	Isolated Module	ITE (Commercial)	83 mA	6-SIP Module 4 Leads	0.77 in	10.2 mm	19.6 mm	0.4 "	0.24 "	6 mm	25.2 V
CUI Inc. VIBLSD1-S12-S5-SIP	1	5 V	85 °C	-40 °C	SCP	Through Hole	69 %	11.4 V	1000 V	Isolated Module	ITE (Commercial)	150 mA	6-SIP Module 4 Leads	0.77 in	10.2 mm	19.6 mm	0.4 "	0.24 "	6 mm	12.6 V
CUI Inc. VIBLSD1-S24-S9-SIP	1	9 V	85 °C	-40 °C	SCP	Through Hole	68 %	22.8 V	1000 V	Isolated Module	ITE (Commercial)		6-SIP Module 4 Leads	0.77 in	10 mm	19.6 mm	0.39 in	0.24 "	6 mm	25.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 5.50

Description

General part information

VIBLSD1 Series

Isolated Module DC DC Converter 1 Output 24V 42mA 22.8V - 25.2V Input
