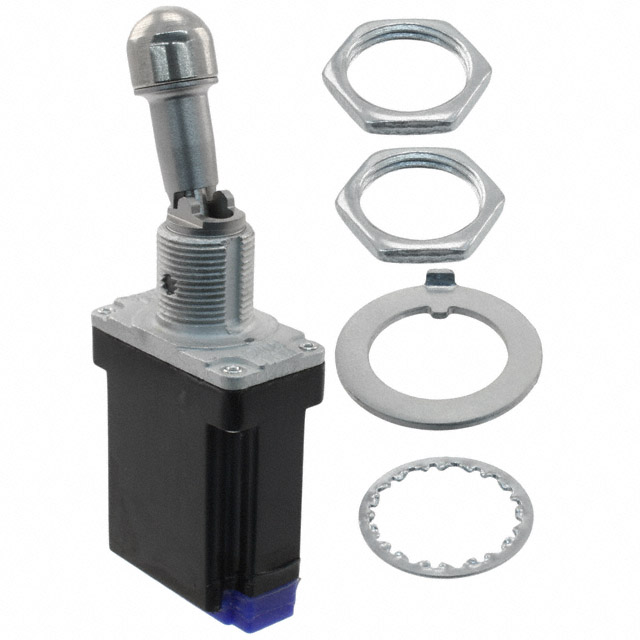

101TL1-2D

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPST 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	101TL1-2D

Actuator Length [x]	26.67 mm
Actuator Material	Nickel Plated
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	15 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Off
Termination Style	IWTS
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Illumination	Switch Function	Ingress Protection	Current Rating (Amps)	Circuit	Bushing Thread	Actuator Length [x]	Voltage Rating - AC	Termination Style	Actuator Type	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions 101TL1-3F	12.4 mm	Non-Illuminated	On-On	Environment Sealed	15 A	SPDT	15/32-32	26.67 mm	125 V	IWTS	Locking Lever	Nickel Plated	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 101TL1-3	12.4 mm	Non-Illuminated	On-On	Environment Sealed	15 A	SPDT	15/32-32	17.27 mm	125 V	IWTS	Standard Round	Nickel Plated	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 101TL1-1	12.4 mm	Non-Illuminated	On-Off-On	Environment Sealed	15 A	SPDT	15/32-32	17.27 mm	125 V	IWTS	Standard Round	Nickel Plated	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 101TL1-5M	12.4 mm	Non-Illuminated	On-Off-Mom	Environment Sealed	10 A	SPDT	15/32-32	26.67 mm	125 V	IWTS	Locking Lever	Nickel Plated	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 101TL1-2D	12.4 mm	Non-Illuminated	On-Off	Environment Sealed	15 A	SPST	15/32-32	26.67 mm	125 V	IWTS	Locking Lever	Nickel Plated	71 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	125	$ 72.38

General part information

Toggle Switch SPST Panel Mount
