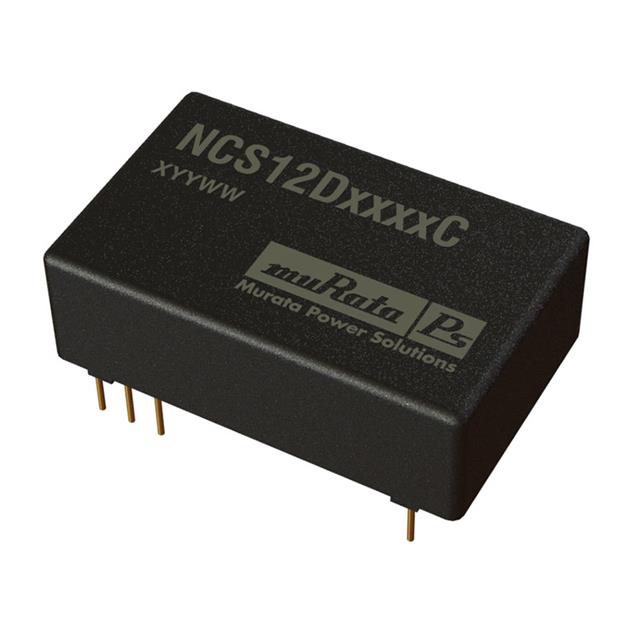

NCS12D1205C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 12W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCS12D1205C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 12W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NCS12D1205C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.2 A |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | 81.5 % |
| Features | OTP, UVLO, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 10.5 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NCS12D Series
Isolated Module DC DC Converter 2 Output 5V -5V 1.2A, 1.2A 9V - 36V Input
