RP1180C

Active

Hammond Manufacturing

BOX PC WHT 6.47"L X 3.39"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PC WHT 6.47"L X 3.39"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1180C

Area (L x W)	142 cm˛
Area (L x W)	22 in˛
Color	White, Clear Cover/Door, Off
Container Type	Box
Design	Cover Included
Height [z]	3.35 in
Height [z]	85.09 mm
Material	Polycarbonate
Material Flammability Rating	UL94 V-2
Size / Dimension [x]	164.34 mm
Size / Dimension [x]	6.47 in
Size / Dimension [y]	3.39 in
Size / Dimension [y]	86.11 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material Flammability Rating	Thickness	Thickness	Material	Color	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Design
Hammond Manufacturing RP1180C	UL94 V-2	2.03 mm	0.08 "	Polycarbonate	Clear Cover/Door Off White	Box	164.34 mm	3.39 in	86.11 mm	6.47 in	3.35 in	85.09 mm	142 cm˛	22 in˛	Cover Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 24.92

General part information

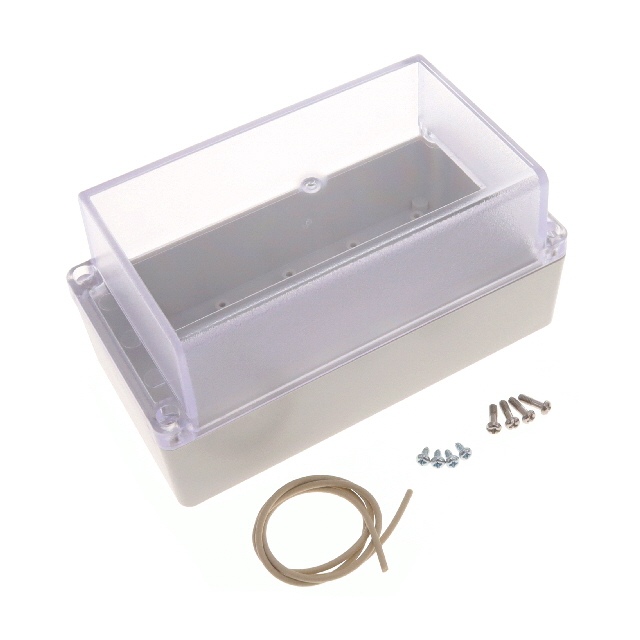

Box Polycarbonate White, Off, Clear Cover/Door Cover Included 6.470" L x 3.390" W (164.34mm x 86.11mm) X 3.350" (85.09mm)

Technical documentation and resources

No documents available
