1096003

Active

Phoenix Contact

SENSOR CABLES / ACTUATOR CABLES SAC4PM8MS/0,5680 M8FS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1096003

Active

Phoenix Contact

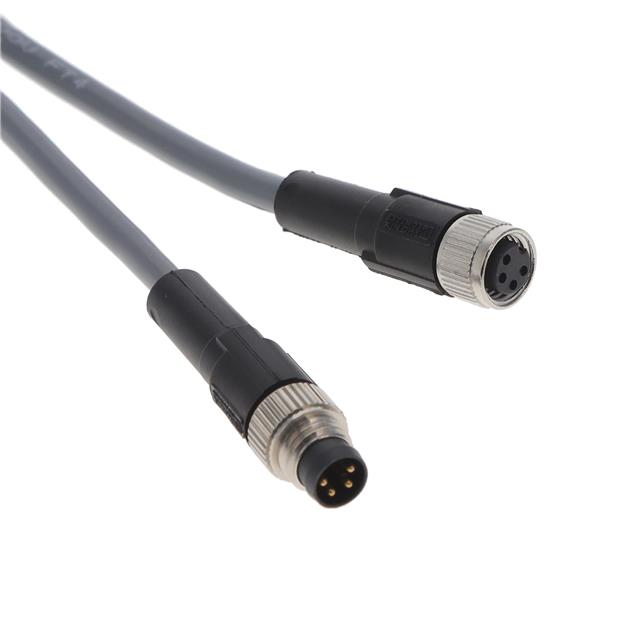

SENSOR CABLES / ACTUATOR CABLES SAC4PM8MS/0,5680 M8FS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1096003

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M8
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Gray
Ingress Protection	IP65, IP68, IP67
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Shielded

M8 Sensor Series

Sensor Cables / Actuator Cables SAC4PM8MR/15,0680 FDN

...

Part	1st Connector Number of Positions	Assembly Configuration	Cable Material	2nd Connector Number of Positions Loaded	2nd Connector Mounting Type	Shielding	1st Connector Mounting Type	1st Connector Type	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Shell Size - Insert	Ingress Protection	1st Connector Gender	Color	Cable Type	2nd Connector Gender	2nd Connector Type	1st Connector Orientation	Length [x]	Length [x]	Length	Length
Phoenix Contact 1096003	4	Standard	Polyvinyl Chloride (PVC)	All	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Plug	M8	All	4	M8	IP65 IP67 IP68	Male Pins	Gray	Round	Female Sockets	Receptacle	A	1.64 ft	500 mm
Phoenix Contact 1095872	4	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Plug	M8	All			IP65 IP67 IP68	Male Pins	Gray	Round		Wire Leads	A
Phoenix Contact 1096075	3	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Plug	M8	All			IP65 IP67 IP68	Male Pins	Gray	Round		Wire Leads	A			131.2 ft	40 m
Phoenix Contact 1096038	4	Standard	Polyvinyl Chloride (PVC)	All	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Plug	M8	All	4	M8	IP65 IP67 IP68	Male Pins	Gray	Round	Female Sockets	Receptacle	A			131.2 ft	40 m
Phoenix Contact 1096048	3	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Plug Right Angle	M8	All			IP65 IP67 IP68	Male Pins	Gray	Round		Wire Leads	A			131.2 ft	40 m
Phoenix Contact 1095996	3	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Receptacle Right Angle	M8	All			IP65 IP67 IP68	Female Sockets	Gray	Round		Wire Leads	A	49.2 ft	15 m
Phoenix Contact 1096081	3	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Plug	M8	All			IP65 IP67 IP68	Male Pins	Gray	Round		Wire Leads	A
Phoenix Contact 1095932	4	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Receptacle Right Angle	M8	All			IP65 IP67 IP68	Female Sockets	Gray	Round		Wire Leads	A	49.2 ft	15 m
Phoenix Contact 1096005	4	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Plug Right Angle	M8	All			IP65 IP67 IP68	Male Pins	Gray	Round		Wire Leads	A
Phoenix Contact 1096036	4	Standard	Polyvinyl Chloride (PVC)			Shielded	Free Hanging (In-Line)	Receptacle Right Angle	M8	All			IP65 IP67 IP68	Female Sockets	Gray	Round		Wire Leads	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.58
Sager	N/A	1	$ 23.70
		10	$ 22.75
		25	$ 20.31

Description

General part information

M8 Sensor Series

Sensor Cables / Actuator Cables SAC4PM8MR/15,0680 FDN
