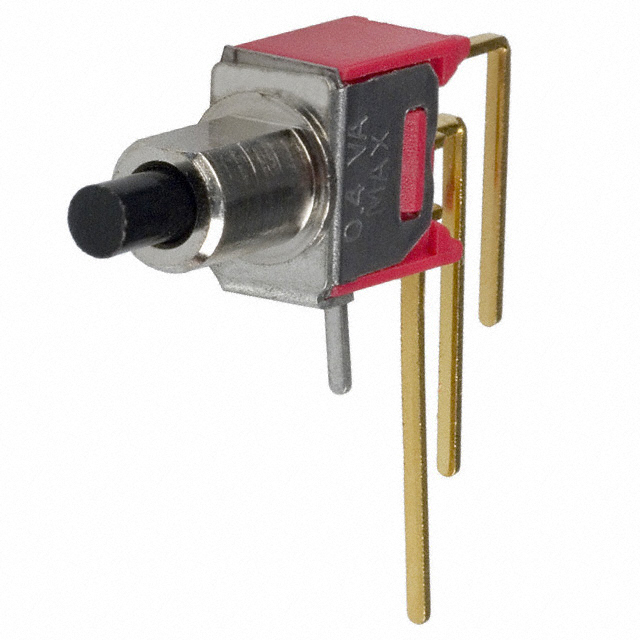

3S1-SP8-B6-M7RE

Active

Carling Technologies

SWITCH PUSH SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH PUSH SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	3S1-SP8-B6-M7RE

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Current Rating (Amps)	Color - Actuator/Cap	Actuator Marking	Type	Electrical Life	Voltage Rating - AC	Mounting Type	Termination Style	Switch Function	Circuit	Voltage Rating - DC
Carling Technologies 3S1-SP8-B6-M7RE	-30 ░C	85 °C	Plunger for Cap	0.4 VA	Black	No Marking	Standard	50000 Cycles	20 V	Right Angle Through Hole Vertical	PC Pin	On-Mom	SPDT	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
