7406-1521-002

Active

Radiall USA, Inc.

SSMB / RIGHT ANGLE JACK MALE CRI

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / RIGHT ANGLE JACK MALE CRI

Technical Specifications

Parameters and characteristics for this part

Specification	7406-1521-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Housing Color	Shield Termination	Voltage Rating	Mounting Feature	Impedance	Body Finish	Body Material	Number of Ports	Connector Type	Center Contact Material	Frequency - Max [Max]	Center Contact Plating	Cable Group	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mounting Type	Fastening Type	Mating Cycles	Dielectric Material	Cable Group
Radiall USA, Inc. 7406-1521-005	Gold	Crimp	250 VDC	Bulkhead - Front Side Nut	50 Ohms	Gold	Brass	1	Jack Male Pin	Beryllium Copper	12.4 GHz	Gold	RD-178 196 Double Braid	Crimp	-65 ░C	165 °C	SSMB	Panel Mount Right Angle	Snap-On	500	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 7406-1521-002	Gold	Crimp	250 VDC	Bulkhead - Front Side Nut	50 Ohms	Gold	Brass	1	Jack Male Pin	Beryllium Copper	12.4 GHz	Gold	RG-178	Crimp	-65 ░C	165 °C	SSMB	Panel Mount Right Angle	Snap-On	500	Polytetrafluoroethylene (PTFE)	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.10

General part information

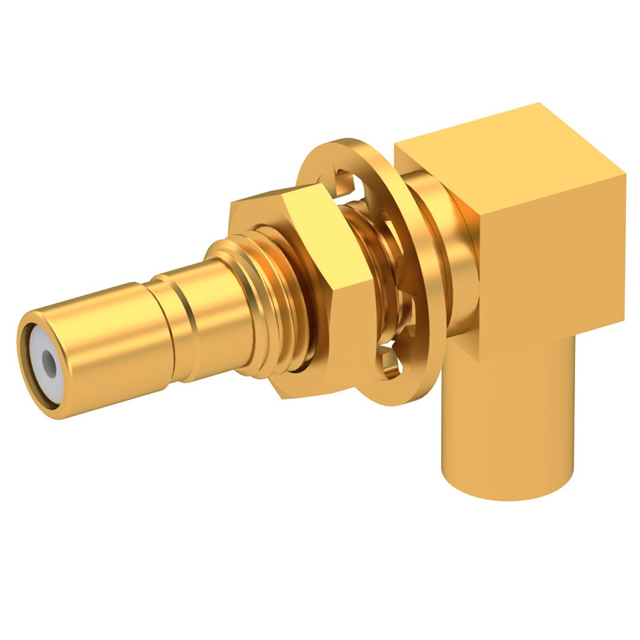

SSMB Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Crimp
