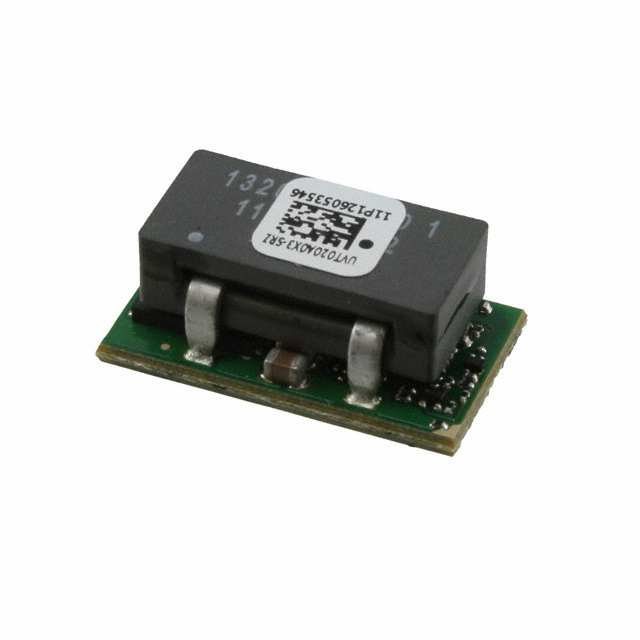

UVT020A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-5.5V 110W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UVT020A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-5.5V 110W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UVT020A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 95.2 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power (Watts) | 110 W |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14.4 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.62 | |
| 5 | $ 16.49 | |||
| 10 | $ 16.36 | |||
| 25 | $ 16.11 | |||
| 50 | $ 15.61 | |||
| 100 | $ 14.10 | |||
| Digi-Reel® | 1 | $ 16.62 | ||
| 5 | $ 16.49 | |||
| 10 | $ 16.36 | |||
| 25 | $ 16.11 | |||
| 50 | $ 15.61 | |||
| 100 | $ 14.10 | |||
| Tape & Reel (TR) | 200 | $ 14.10 | ||
| 400 | $ 13.85 | |||
| 600 | $ 13.59 | |||
Description
General part information
UVT020 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 20A 3V - 14.4V Input
