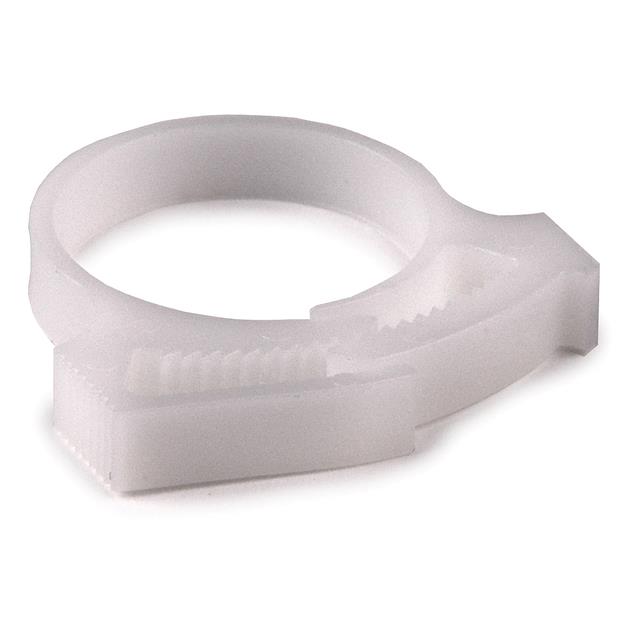

SNP2210C2

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SNP2210C2

Color	White
Length [Max]	1.473 "
Length [Max]	37.41 mm
Length [Min]	0.932 "
Length [Min]	23.67 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [custom]	27.23 mm
Opening Size [Max] [custom]	1.072 in
Opening Size [Min] [custom]	23.57 mm
Opening Size [Min] [custom]	0.928 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	0.234 in
Width [x]	5.94 mm

Part	Width [x]	Width [x]	Color	Type Attributes	Material	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Length [Min]	Length [Min]	Length [Max]	Length [Max]	Material Flammability Rating	Type	Material Thickness	Material Thickness
HELLERMANNTYTON SNP2210C2	0.234 in	5.94 mm	White	Push-Fit	Polyacetal (POM)	23.57 mm	27.23 mm	0.928 in	1.072 in	0.932 "	23.67 mm	1.473 "	37.41 mm	UL94 HB	Clamp Hose	0.07 in	1.78 mm
