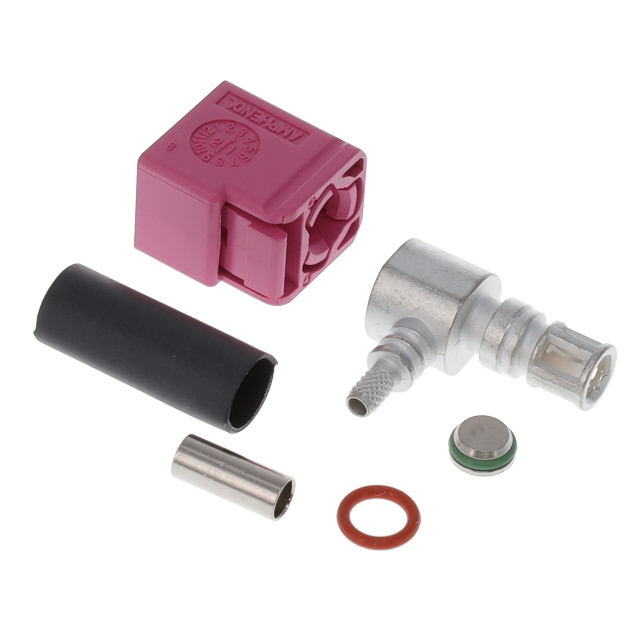

3FA1ENHRJ-C01ER

Active

Amphenol RF

FAKRA GEN 3 RIGHT ANGLE CRIMP JACK RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM LOW PROFILE IP67 H KEY CODE

Search across all available documentation for this part.

Active

Amphenol RF

FAKRA GEN 3 RIGHT ANGLE CRIMP JACK RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM LOW PROFILE IP67 H KEY CODE

Technical Specifications

Parameters and characteristics for this part

Specification	3FA1ENHRJ-C01ER

Body Finish	Tin
Body Material	Zinc Die Cast
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code H
Frequency - Max [Max]	3 GHz
Housing Color	Violet, Heather
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Dielectric Material	Connector Style	Body Material	Cable Group	Connector Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Mounting Type	Fastening Type	Number of Ports	Contact Termination	Housing Color	Features	Center Contact Material	Impedance
Amphenol RF 3FA1ENHRJ-C01ER	Polytetrafluoroethylene (PTFE)	Fakra SMB	Zinc Die Cast	188 316 RG-174	Female Socket Jack	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Tin	3 GHz	Crimp	Gold	Free Hanging (In-Line) Right Angle	Latch Lock	1	Solder	Heather Violet	Code H	Beryllium Copper	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
