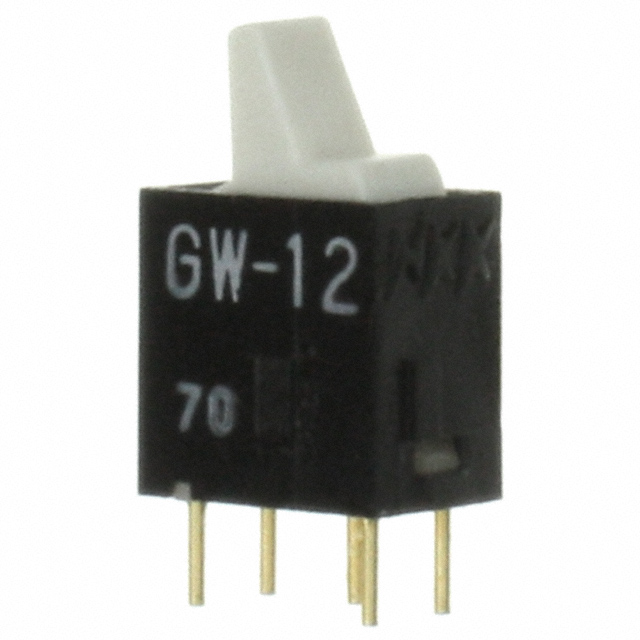

GW12LBP

Active

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Voltage Rating - DC	Circuit	Actuator Type	Electrical Life	Current Rating (Amps)	Switch Function	Actuator Marking	Color - Actuator/Cap	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Features	Approval Agency
NKK Switches GW12LBP	PC Pin	28 V	SPDT	Paddle	50000 Cycles	0.4 VA	On-On	No Marking	White	Through Hole	-30 ░C	85 °C	28 V	Sealed - Flux Protection	CSA UL
NKK Switches GW12LBH	PC Pin	28 V	SPDT	Paddle	50000 Cycles	0.4 VA	On-On	No Marking	White	Through Hole Right Angle	-30 ░C	85 °C	28 V	Sealed - Flux Protection	CSA UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
