FISD002R9

Active

Belden Inc.

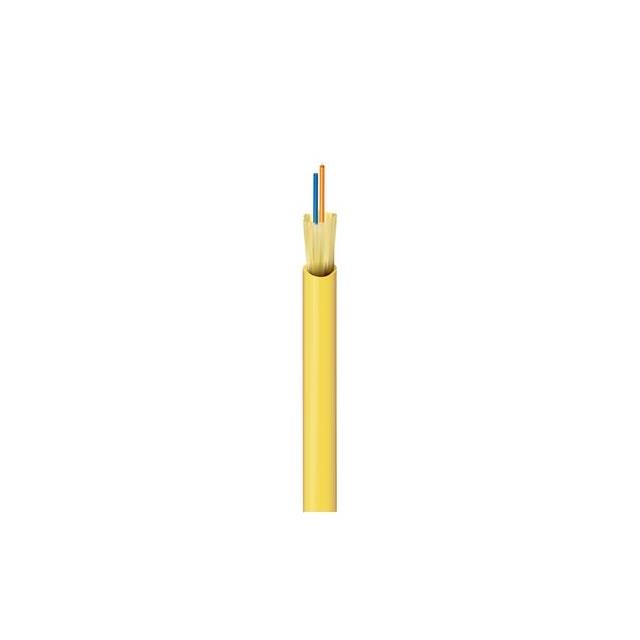

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISD002R9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord
Features	2 pcs per Pkg
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Singlemode

Part	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Features	Tensile Strength	Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Core Diameter [diameter]	Jacket (Insulation) Material	Ratings	Cladding Diameter [diameter]	Style
Belden Inc. FISD002P9	Yellow	70 °C	0 °C	Rip Cord	2 pcs per Pkg	20.4 kg	Singlemode	0.174 "	4.42 mm	9 µm	Poly-Vinyl Chloride (PVC)	OFNP	125 µm	Multiple Fibers
Belden Inc. FISD002R9	Yellow	70 °C	-20 C	Rip Cord	2 pcs per Pkg	20.4 kg	Singlemode	0.184 in	4.67 mm	9 µm	Poly-Vinyl Chloride (PVC)	OFNR	125 µm	Multiple Fibers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 0.18

General part information

Fiber Optic Cable Yellow Singlemode 125µm
