AAD1-9090SY28ZC

Active

Kingbright

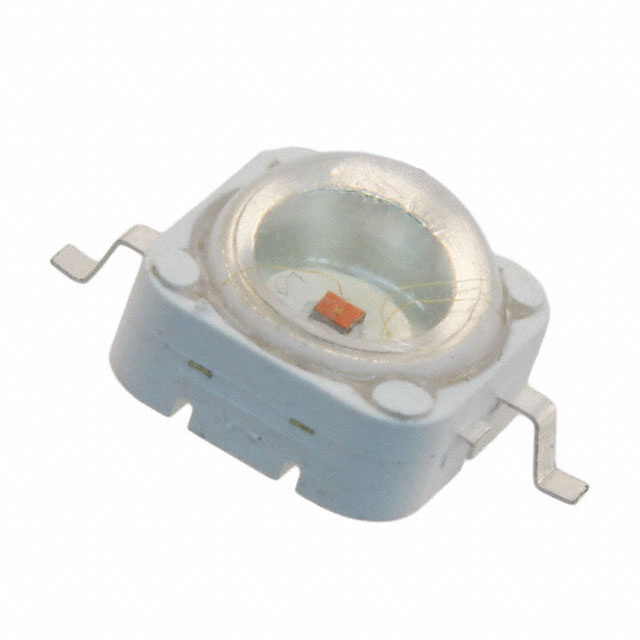

SINGLE COLOR LED, SUPER BRIGHT YELLOW, 7.7MM, ROHS COMPLIANT PACKAGE-2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAD1-9090SY28ZC

Active

Kingbright

SINGLE COLOR LED, SUPER BRIGHT YELLOW, 7.7MM, ROHS COMPLIANT PACKAGE-2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AAD1-9090SY28ZC

Color	Yellow
Current - Max [Max]	350 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	6.78 mm
Height - Seated (Max) [Max] [z]	0.267 in
Lumens/Watt @ Current - Test	37 lm/W
Luminous Flux @ Current/Temperature	32 lm
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [x]	9 mm
Size / Dimension [x]	0.354 "
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	2.5 V
Wavelength	588 nm

AAD1-9090 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Type	Viewing Angle	Wavelength	Current - Test	Height [z]	Lens Type	Color	Configuration	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Wavelength	Voltage - Forward (Vf) (Typ)	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Thermal Resistance of Package
Kingbright AAD1-9090BRGC-01/3-S	19.75 mm	19.05 mm	350 mA	2.5 V	3.2 V	3.3 V	LED Module	135 °	458nm Blue 530nm Green 625nm Red	350 mA	8.3 mm	Domed	Blue Green Red	Starboard
Kingbright AAD1-9090QB11ZC/3-S	19.75 mm	19.05 mm	700 mA				LED Module	135 °			8.3 mm	Domed	Blue	Starboard	7 lm/W	20 lm	460 nm	3.9 V
Kingbright AAD1-9090SE28ZC-S	19.75 mm	19.05 mm	350 mA				LED Module	135 °		350 mA	8.3 mm	Domed	Orange-Red	Starboard	34 lm/W	30 lm	625 nm	2.5 V
Kingbright AAD1-9090SY28ZC	0.354 "	0.354 in	350 mA					100 °		350 mA			Yellow		37 lm/W	32 lm	588 nm	2.5 V	Surface Mount	9 mm	9 mm	2-SMD Gull Wing Exposed Pad	6.78 mm	0.267 in	12 °C/W
Kingbright AAD1-9090SE9ZC/2	0.354 "	0.354 in	500 mA					100 °		500 mA			Red		37 lm/W	50 lm	623 nm	2.7 V	Surface Mount	9 mm	9 mm	2-SMD Gull Wing Exposed Pad	6.78 mm	0.267 in	12 °C/W
Kingbright AAD1-9090SE28ZC	0.354 "	0.354 in	350 mA					100 °		350 mA			Red		40 lm/W	35 lm	625 nm	2.5 V	Surface Mount	9 mm	9 mm	2-SMD Gull Wing Exposed Pad	6.78 mm	0.267 in	12 °C/W
Kingbright AAD1-9090BRGC-01/3	0.354 "	0.354 in		2.5 V	3.2 V	3.3 V		135 °	458nm Blue 530nm Green 625nm Red				Blue Green Red						Surface Mount	9 mm	9 mm	4-SMD J-Lead Exposed Pad	6.78 mm	0.267 in		350 mA	350 mA	350 mA	18 lm/W	34 lm/W	43 lm/W	30 lm	50 lm	20 lm	9 °C/W 9 °C/W 12 °C/W
