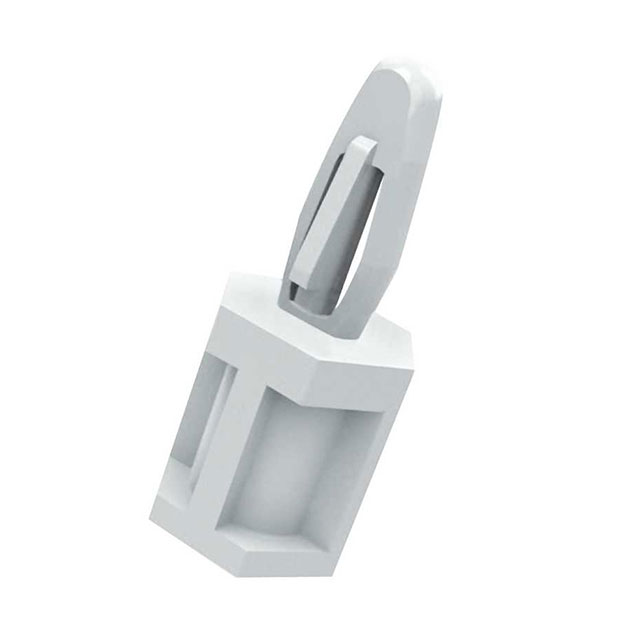

TCBS-22.5-19
ActiveEssentra Access Solutions
BRD SPT SNAP LCK SCRW MT 1 13/32
Deep-Dive with AI
Search across all available documentation for this part.
TCBS-22.5-19
ActiveEssentra Access Solutions
BRD SPT SNAP LCK SCRW MT 1 13/32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCBS-22.5-19 |
|---|---|
| Between Board Height | 1.406 in |
| Between Board Height | 35.71 mm |
| Between Board Height | |
| Features | M3.5 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.807 in |
| Length - Overall [x] | 45.9 mm |
| Material | Nylon |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.56 | |
| 5 | $ 0.47 | |||
| 10 | $ 0.42 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
Description
General part information
TCBS-22 Series
Board Support Snap Lock / Screw Mount Nylon 1.406" (35.71mm) 1 13/32"
