1467950-1

Active

TE Connectivity Aerospace, Defense and Marine

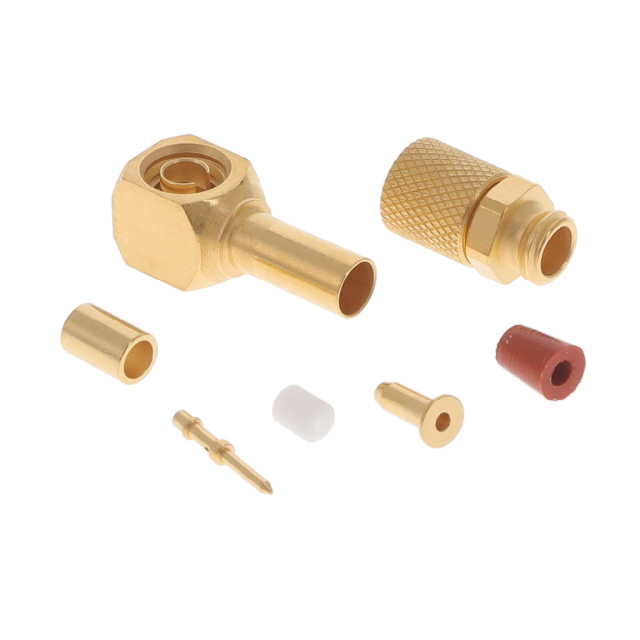

CONN SMB PLUG MINIATURE R/A

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN SMB PLUG MINIATURE R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1467950-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	2 Insulators, 1 Ferrule, 1 Connector, 3 Sleeves, 1 Contact
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Impedance	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Connector Type	Body Finish	Center Contact Material	Center Contact Plating	Connector Style	Frequency - Max [Max]	Contact Termination	Shield Termination	Includes	Mounting Type	Housing Color
TE Connectivity Aerospace, Defense and Marine 1467950-1	50 Ohms	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Brass	Male Pin Plug	Gold	Beryllium Copper	Gold	SMA	4 GHz	Crimp	Crimp	1 Connector 1 Contact 1 Ferrule 2 Insulators 3 Sleeves	Free Hanging (In-Line) Right Angle	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.06

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
