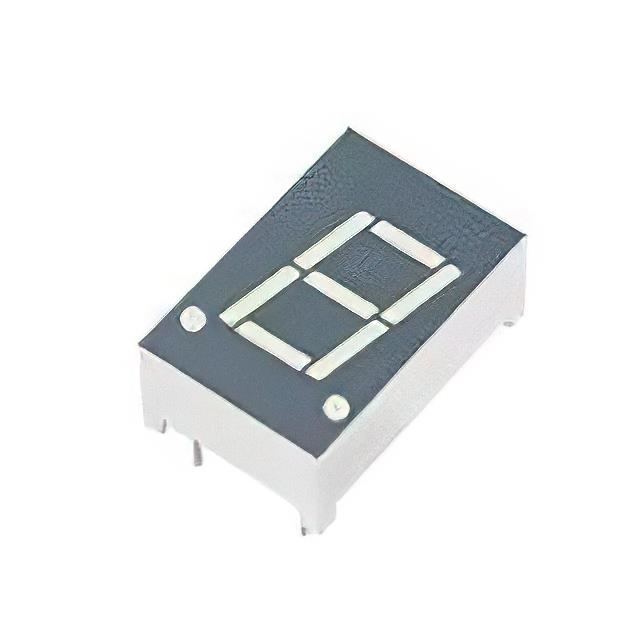

SA43-11SURKWA

Active

Kingbright

.43" RED LED DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA43-11SURKWA

Active

Kingbright

.43" RED LED DISPLAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA43-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size [custom]	0.43 "
Digit/Alpha Size [custom]	10.92 mm
Display Type	7-Segment
Millicandela Rating	100 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	19 mm
Size / Dimension [x]	0.748 in
Size / Dimension [y]	12.6 mm
Size / Dimension [y]	0.496 in
Size / Dimension [z]	7.87 mm
Size / Dimension [z]	0.31 in
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	630 nm

SA43-11 Series

Part	Color	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Common Pin	Digit/Alpha Size [custom]	Digit/Alpha Size [custom]	Wavelength - Peak	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Kingbright SA43-11GWA	Green	10 mcd	62.5 mW	7-Segment	Common Anode	0.43 "	10.92 mm	565 nm	20 mA	2.2 V	1	14-DIP	7.62 mm	0.3 "	19 mm	7.87 mm	0.31 in	0.748 in	12.6 mm	0.496 in
Kingbright SA43-11SRWA	Red	42 mcd	75 mw	7-Segment	Common Anode	0.43 "	10.92 mm	660 nm	20 mA	1.85 V	1	14-DIP	7.62 mm	0.3 "	19 mm	7.87 mm	0.31 in	0.748 in	12.6 mm	0.496 in
Kingbright SA43-11EWA	Red	6.9 mcd	75 mw	7-Segment	Common Anode	0.43 "	10.92 mm	627 nm	20 mA	2 V	1	14-DIP	7.62 mm	0.3 "	19 mm	7.87 mm	0.31 in	0.748 in	12.6 mm	0.496 in
Kingbright SA43-11YWA	Yellow	6.5 mcd	75 mw	7-Segment	Common Anode	0.43 "	10.92 mm	590 nm	20 mA	2.1 V	1	14-DIP	7.62 mm	0.3 "	19 mm	7.87 mm	0.31 in	0.748 in	12.6 mm	0.496 in
Kingbright SA43-11SURKWA	Red	100 mcd	75 mw	7-Segment	Common Anode	0.43 "	10.92 mm	630 nm	10 mA	1.85 V	1				19 mm	7.87 mm	0.31 in	0.748 in	12.6 mm	0.496 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.49
		26	$ 1.66
		104	$ 1.28
		520	$ 1.15
		1014	$ 0.99
		2002	$ 0.94
		5018	$ 0.92
		10010	$ 0.90

Description

General part information

SA43-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 10mA 0.748" H x 0.496" W x 0.310" D (19.00mm x 12.60mm x 7.87mm) 14-DIP (0.300", 7.62mm), 11 Leads
