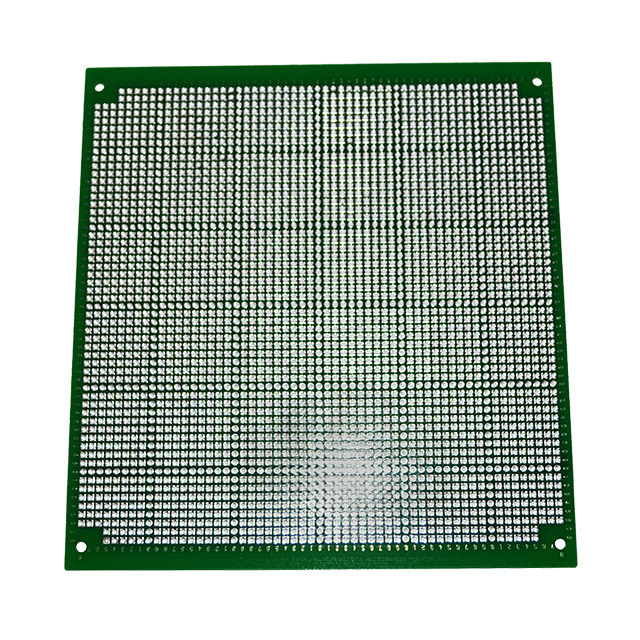

EXN-23412-PCB
ActiveBUD INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EXN-23412-PCB |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter | 0.051 in |
| Hole Diameter | 1.3 mm |
| Material | FR4 Epoxy Glass |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 6.29 " |
| Size / Dimension [x] | 159.8 mm |
| Size / Dimension [y] | 5.98 " |
| Size / Dimension [y] | 151.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.10 | |
| 10 | $ 20.90 | |||
| 50 | $ 18.80 | |||
| 100 | $ 17.75 | |||
Description
General part information
EXN-23412 Series
Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm)
