337-023-520-658
ActiveEDAC Inc.

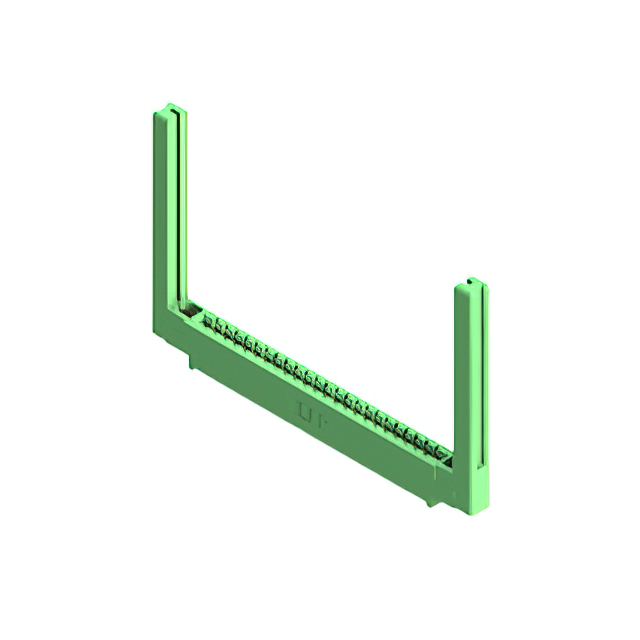

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 23 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-023-520-658
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 23 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-023-520-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
337-023 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Positions | Read Out | Gender | Color | Contact Material | Flange Feature | Card Type | Number of Rows | Number of Positions/Bay/Row [custom] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Pitch [x] | Pitch [x] | Termination Rows | Mounting Type | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 1 | 23 | Wire Wrap | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole Right Angle | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | 23 | Solder | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 1 | 23 | Solder | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 1 | 23 | Solder | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | Non Specified - Single Edge | 1 | 23 | Wire Wrap | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | ||||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | 23 | Solder | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 1 | 23 | Solder | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | 3.96 mm | 0.156 in | |
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 1 | 23 | Wire Wrap | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | 3.96 mm | 0.156 in | |
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 1 | 23 | Solder | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 23 | Single | Female | Green | Copper Alloy | Top Mount Opening Unthreaded | Non Specified - Single Edge | 1 | 23 | Wire Wrap | 10 Áin | 0.25 Ám | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Gold | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
