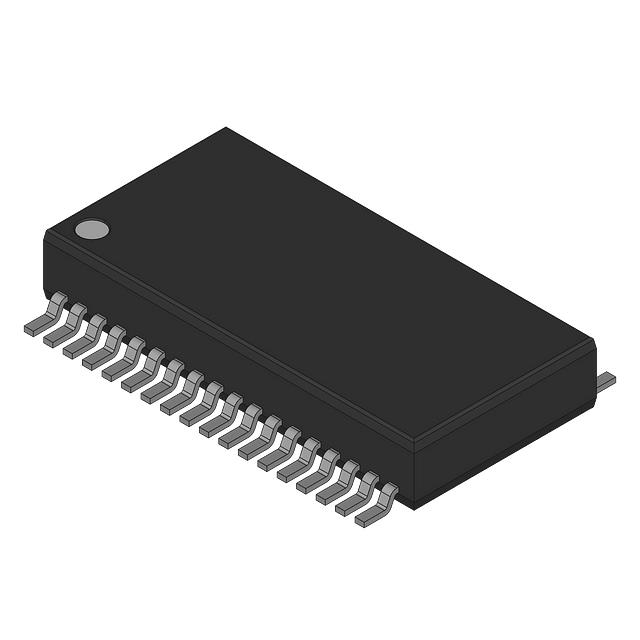

DS2117MB
ActiveDallas Semiconductor
SCSI TERMINATOR, 9-LINE, 52OHM,
Deep-Dive with AI
Search across all available documentation for this part.
DS2117MB
ActiveDallas Semiconductor
SCSI TERMINATOR, 9-LINE, 52OHM,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS2117MB |
|---|---|
| Mounting Type | Surface Mount |
| Number of Terminations | 9 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 36-BSOP |
| Package / Case [y] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Supplier Device Package | 36-SSOP |
| Type | SE, LVD, SCSI |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 52 | $ 5.78 | |
Description
General part information
DS2117M Series
SCSI, LVD, SE Terminator 9 Terminations 36-SSOP
Documents
Technical documentation and resources
No documents available
