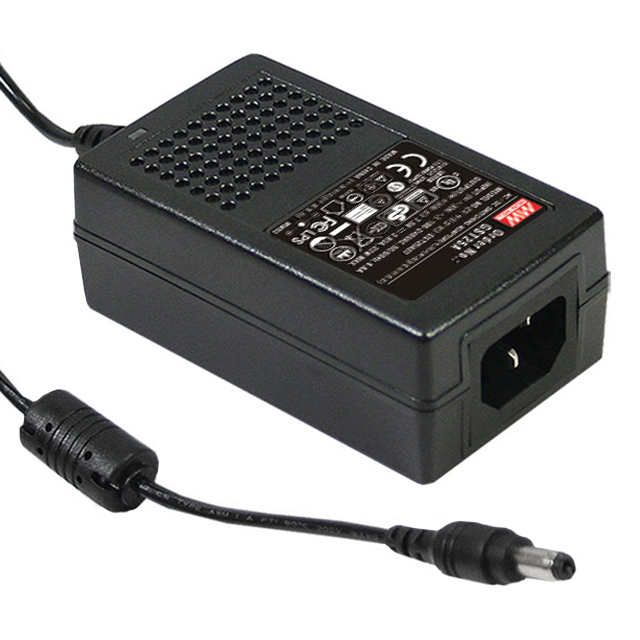

GST25A07-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 7.5V 22W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GST25A07-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 7.5V 22W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GST25A07-P1J |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, GS, CCC, cULus, EAC, SIRIM, BIS, CB, BSMI, RCM, KC, PSE |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 2.93 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 22 W |
| Region Utilized | International |
| Size / Dimension [x] | 93 mm |
| Size / Dimension [x] | 3.66 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36 mm |
| Voltage - Output | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.70 | |
| 5 | $ 13.00 | |||
| 10 | $ 12.50 | |||
| 25 | $ 12.10 | |||
Description
General part information
GST25A07 Series
7.5V 22 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
