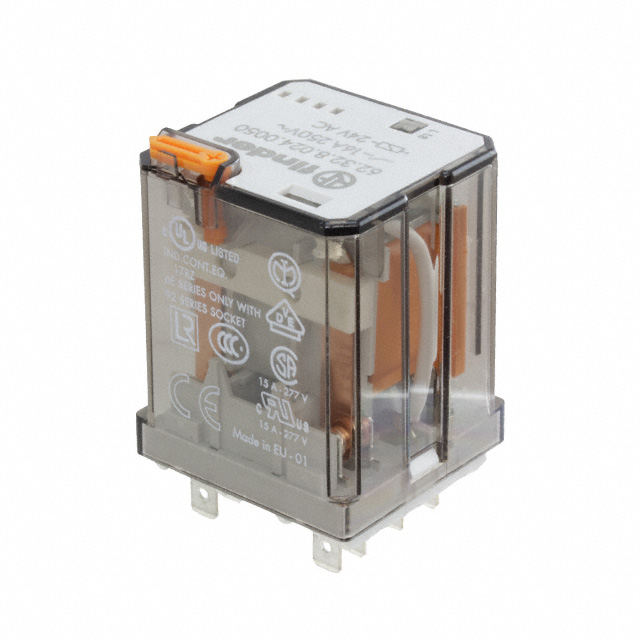

62.32.8.120.0050

Obsolete

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 16A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

62.32.8.120.0050

Obsolete

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 16A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	62.32.8.120.0050

Approval Agency	cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC
Coil Current	18.6 mA
Coil Resistance	1.94 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	16 A
Features	Test Button, Lighted Indicator
Load - Max Switching	6400 VA
Mounting Type	Socketable
Must Operate Voltage	96 VAC
Must Release Voltage	24 VAC
Operate Time	11 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Switching Voltage [Max]	400 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

62.32.8 Series

Part	Approval Agency	Termination Style	Coil Resistance	Features	Mounting Type	Must Operate Voltage	Operate Time	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Must Release Voltage	Contact Material	Contact Rating (Current)	Relay Type	Coil Current	Switching Voltage [Max]	Release Time	Coil Voltage	Load - Max Switching
Finder Relays, Inc. 62.32.8.230.0050	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	7.25 kOhms	Lighted Indicator Test Button	Socketable	184 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	46 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	10.5 mA	400 VAC	4 ms	230 VAC	6400 VA
Finder Relays, Inc. 62.32.8.120.0006	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.94 kOhms		Socketable	96 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	18.6 mA	400 VAC	4 ms	120 VAC	6400 VA
Finder Relays, Inc. 62.32.8.120.0000	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.94 kOhms		Socketable	96 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	18.6 mA	400 VAC	4 ms	120 VAC	6400 VA
Finder Relays, Inc. 62.32.8.240.0030	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	8.5 kOhms	Lighted Indicator	Socketable	192 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	48 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	9.2 mA	400 VAC	4 ms	240 VAC	6400 VA
Finder Relays, Inc. 62.32.8.120.0040	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.94 kOhms		Socketable	96 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	18.6 mA	400 VAC	4 ms	120 VAC	6400 VA
Finder Relays, Inc. 62.32.8.024.0030	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	74 Ohms	Lighted Indicator	Socketable	19.2 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	4.8 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	90 mA	400 VAC	4 ms	24 VAC	6400 VA
Finder Relays, Inc. 62.32.8.120.0300	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.35 kOhms		Socketable	106 VAC	15 ms	DPST-NO (2 Form A)	-40 °C	50 °C	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	24 mA	400 VAC	3 ms	120 VAC	6400 VA
Finder Relays, Inc. 62.32.8.120.0030	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.94 kOhms	Lighted Indicator	Socketable	96 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	18.6 mA	400 VAC	4 ms	120 VAC	6400 VA
Finder Relays, Inc. 62.32.8.120.0050	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.94 kOhms	Lighted Indicator Test Button	Socketable	96 VAC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	18.6 mA	400 VAC	4 ms	120 VAC	6400 VA
Finder Relays, Inc. 62.32.8.110.0050	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Plug In Quick Connect - 0.187" (4.7mm)	1.6 kOhms	Lighted Indicator Test Button	Socketable	88 VAC/DC	11 ms	DPDT (2 Form C)	-40 °C	70 °C	Non Latching	22 VAC	Silver Cadmium Oxide (AgCdO)	16 A	General Purpose	20 mA	400 VAC	4 ms	110 VAC/DC	6400 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

62.32.8 Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
