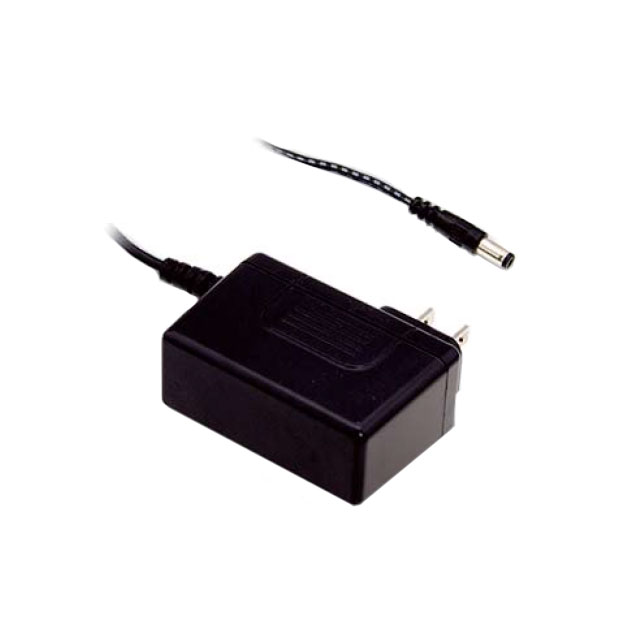

GSM60U48-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 48V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSM60U48-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 48V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSM60U48-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | UR, FCC, CB |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 90 % |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 60 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.97 in |
| Size / Dimension [x] | 75.5 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [z] | 47.5 mm |
| Size / Dimension [z] | 1.87 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.31 | |
Description
General part information
GSM60U48 Series
48V 60 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
