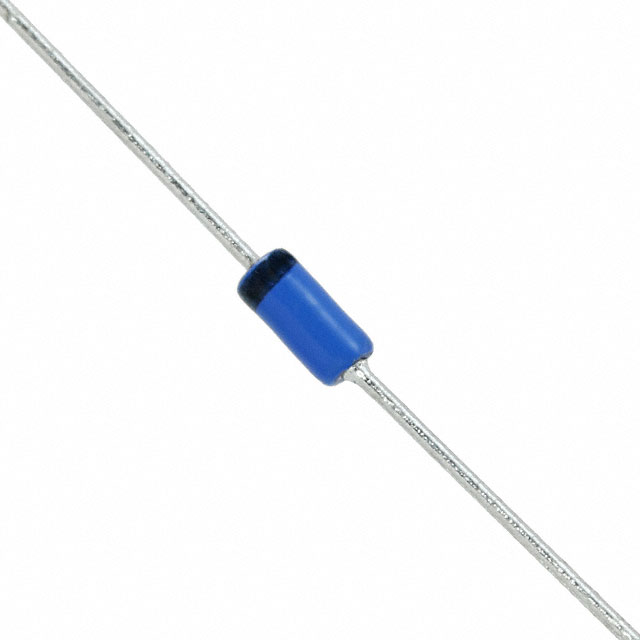

1N6263 - DB4 Polarity Band

1N6263

Active
STMicroelectronics

SMALL SIGNAL SCHOTTKY DIODE, SINGLE, 60 V, 15 MA, 410 MV, 50 MA, 200 C ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+2
1N6263 - DB4 Polarity Band

1N6263

Active
STMicroelectronics

SMALL SIGNAL SCHOTTKY DIODE, SINGLE, 60 V, 15 MA, 410 MV, 50 MA, 200 C ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification1N6263
Capacitance @ Vr, F2.2 pF
Current - Average Rectified (Io)15 mA
Current - Reverse Leakage @ Vr200 nA
Mounting TypeThrough Hole
Operating Temperature - Junction [Max]200 C
Operating Temperature - Junction [Min]-65 C
Package / CaseAxial, DO-35, DO-204AH
SpeedAny Speed
Speed200 mA
Supplier Device PackageDO-35
TechnologySchottky
Voltage - DC Reverse (Vr) (Max) [Max]60 V
Voltage - Forward (Vf) (Max) @ If1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.25
10$ 0.17
100$ 0.08
500$ 0.07
1000$ 0.05
2000$ 0.04
Tape & Reel (TR) 4000$ 0.04
8000$ 0.04
12000$ 0.03
28000$ 0.03
100000$ 0.03
200000$ 0.02
NewarkEach 1$ 0.16
10$ 0.11
100$ 0.07
500$ 0.06
1000$ 0.06
2500$ 0.06

Description

General part information

1N6263 Series

Metal to silicon junction diode featuring high breakdown, low turn-on voltage and ultrafast switching.Primarly intended for high level UHF/VHF detection and pulse application with broad dynamic range.
