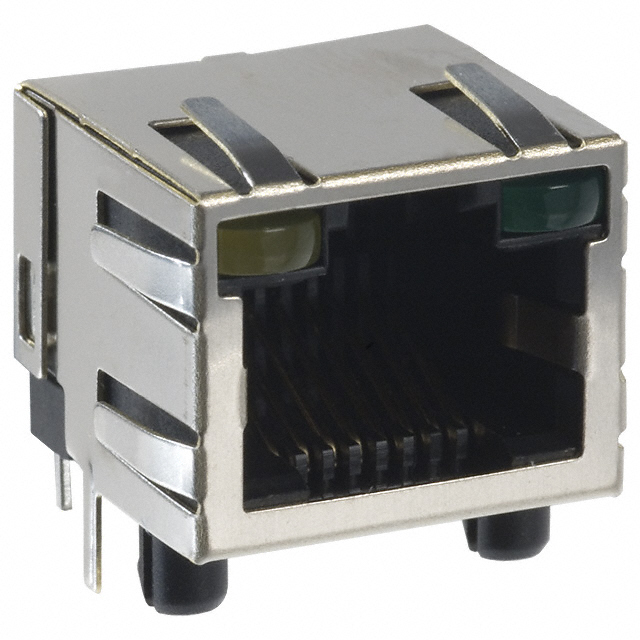

J6H018862N13211

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	J6H018862N13211

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Ratings	Cat5
Shielding	Shielded
Tab Direction	Up
Termination	Solder

Part	Mounting Type	Number of Positions/Contacts	Contact Material	Shielding	Ratings	Housing Material	Number of Rows	Orientation	Tab Direction	Connector Type	Contact Finish Thickness	Number of Ports	Contact Finish	Termination	LED Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. J6H018822N00211	Through Hole	8p8c (RJ45 Ethernet)	Phosphor Bronze	Shielded	Cat5	Polybutylene Terephthalate (PBT)	1	90 °	Up	Jack	Flash	1	Gold	Solder	Does Not Contain LED
EDAC Inc. J6H018862N13211	Through Hole	8p8c (RJ45 Ethernet)	Phosphor Bronze	Shielded	Cat5	Polybutylene Terephthalate (PBT)	1	90 °	Up	Jack		1	Gold	Solder	Yellow - Green	0.76 Ám	30 Áin
EDAC Inc. J6H018862N66211	Through Hole	8p8c (RJ45 Ethernet)	Phosphor Bronze	Shielded	Cat5	Polybutylene Terephthalate (PBT)	1	90 °	Up	Jack		1	Gold	Solder	Red Green	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
