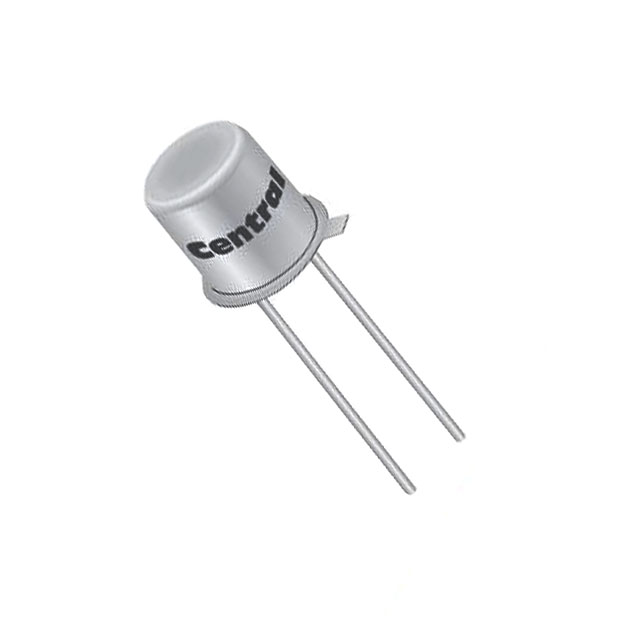

BAV45

Obsolete

Central Semiconductor Corp

DIODE GEN PURP 20V 50MA TO18

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

DIODE GEN PURP 20V 50MA TO18

Technical Specifications

Parameters and characteristics for this part

Specification	BAV45

Capacitance @ Vr, F	1.3 pF
Current - Average Rectified (Io)	50 mA
Current - Reverse Leakage @ Vr	5 pA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	TO-18-2
Reverse Recovery Time (trr)	600 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	TO-18
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Mounting Type	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Package / Case	Supplier Device Package
Central Semiconductor Corp BAV45	Standard	20 V	125 °C	-65 C	1 V	Any Speed	200 mA	Through Hole	1.3 pF	5 pA	600 ns	50 mA	TO-18-2	TO-18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 20 V 50mA Through Hole TO-18
