R6410-00
ActiveHarwin Inc.

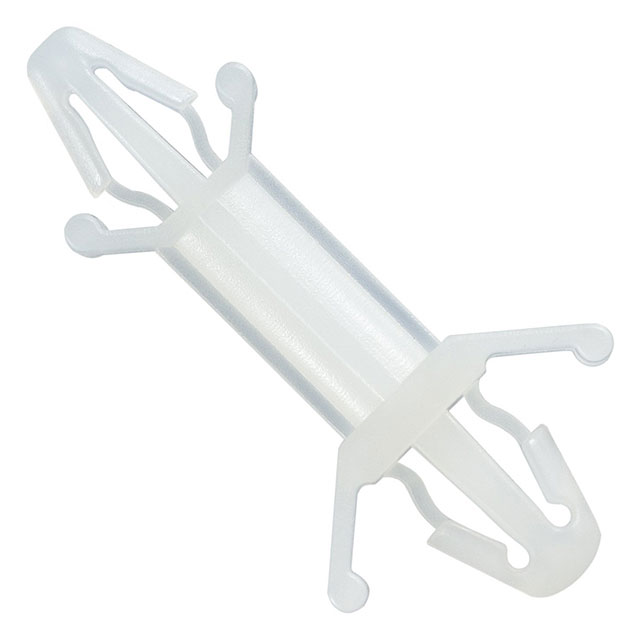

BRD SPT SNAP LOCK NYLON 9.60MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R6410-00
ActiveHarwin Inc.
BRD SPT SNAP LOCK NYLON 9.60MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R6410-00 |
|---|---|
| Between Board Height | 0.378 in |
| Between Board Height | 9.6 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 26.2 mm |
| Length - Overall [x] | 1.031 in |
| Material | Nylon |
| Mounting Hole Diameter | 4.8 mm |
| Mounting Hole Diameter | 0.189 in |
| Mounting Panel Thickness | 2.7 mm |
| Mounting Panel Thickness | 0.106 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 5 | $ 0.23 | |||
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
Description
General part information
R6410 Series
Board Support Snap Lock / Snap Lock Nylon 0.378" (9.60mm)
Documents
Technical documentation and resources
