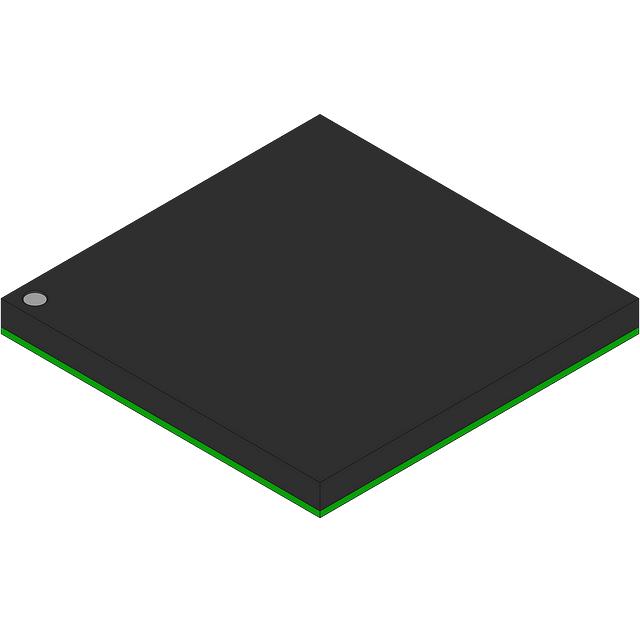

EPM2210GF324C3

Active

Altera

IC CPLD 1700MC 7NS 324FBGA

Search across all available documentation for this part.

Active

Altera

IC CPLD 1700MC 7NS 324FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EPM2210GF324C3

Delay Time tpd(1) Max [Max]	7 ns
Mounting Type	Surface Mount
Number of I/O	272
Number of Logic Elements/Blocks	2210
Number of Macrocells	1700
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	324-BGA
Programmable Type	In System Programmable
Supplier Device Package	324-FBGA (19x19)
Voltage Supply - Internal [Max]	1.89 V
Voltage Supply - Internal [Min]	1.71 V

Part	Package / Case	Supplier Device Package	Number of Macrocells	Number of Logic Elements/Blocks	Number of I/O	Delay Time tpd(1) Max [Max]	Programmable Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Supply - Internal	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]
Altera EPM2210F324A5N	324-BGA	324-FBGA (19x19)	1700	2210	272	7 ns	In System Programmable	Surface Mount	-40 °C	125 ¯C	2.5 V 3.3 V
Altera EPM2210GF256C5N	256-BGA	256-FBGA (17x17)	1700	2210	204	7 ns	In System Programmable	Surface Mount	0 °C	85 °C		1.71 V	1.89 V
Altera EPM2210GF324C3	324-BGA	324-FBGA (19x19)	1700	2210	272	7 ns	In System Programmable	Surface Mount	0 °C	85 °C		1.71 V	1.89 V
Altera EPM2210F256C4N	256-BGA	256-FBGA (17x17)	1700	2210	204	7 ns	In System Programmable	Surface Mount	0 °C	85 °C	2.5 V 3.3 V
Altera EPM2210F256A5N	256-BGA	256-FBGA (17x17)	1700	2210	204	7 ns	In System Programmable	Surface Mount	-40 °C	125 ¯C	2.5 V 3.3 V
Altera EPM2210GF324C4N	324-BGA	324-FBGA (19x19)	1700	2210	272	7 ns	In System Programmable	Surface Mount	0 °C	85 °C		1.71 V	1.89 V
Altera EPM2210GF256I5	256-BGA	256-FBGA (17x17)	1700	2210	204	7 ns	In System Programmable	Surface Mount	-40 C	100 °C		1.71 V	1.89 V
Altera EPM2210GF324C3	324-BGA	324-FBGA (19x19)	1700	2210	272	7 ns	In System Programmable	Surface Mount	0 °C	85 °C		1.71 V	1.89 V
Altera EPM2210GF256C4N	256-BGA	256-FBGA (17x17)	1700	2210	204	7 ns	In System Programmable	Surface Mount	0 °C	85 °C		1.71 V	1.89 V
Altera EPM2210F324I5	324-BGA	324-FBGA (19x19)	1700	2210	272	7 ns	In System Programmable	Surface Mount	-40 C	100 °C	2.5 V 3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IC CPLD 1700MC 7NS 324FBGA
