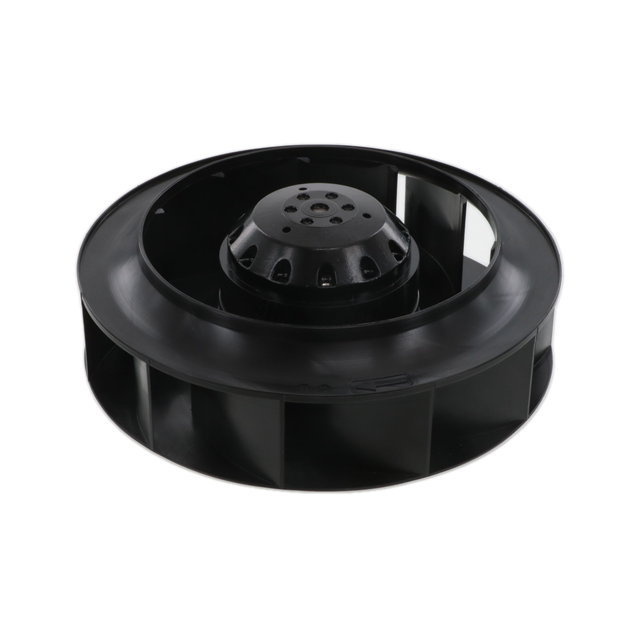

R2D220-AB02-10

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R2D220-AB02-10

Approval Agency	CCC
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	3 Phase, Motorized Impellers
Ingress Protection	IP44
Material - Blade	Polyamide (PA6), Nylon 6
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	110 W
RPM	3250 RPM
Size / Dimension	Round
Size / Dimension [diameter]	221.4 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	440 VAC

Part	Current Rating (Amps)	Power (Watts)	RPM [Min]	RPM [Max]	Width [x]	Termination	Ingress Protection	Operating Temperature	Operating Temperature	Air Flow	Air Flow	Size / Dimension	Size / Dimension [diameter]	Bearing Type	Voltage - Rated [Min]	Voltage - Rated [Max]	Fan Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	RPM	Material - Blade
ebm-papst Inc. R2D220-AB02-11	0.19 A	70 W 110 W	995 RPM	1180 RPM	104 mm	1 Wire Lead with Ring Terminal 3 Wire Leads with QC Receptacles	IP44	70 °C	70 °C	19.46 m³/min	695 CFM	Round	220 mm	Ball	400 VAC	440 VAC	3 Phase Motorized Impellers
ebm-papst Inc. R2D220-AB02-10	0.2 A	110 W				4 Wire Leads with Splice Terminals	IP44					Round	221.4 mm	Ball			3 Phase Motorized Impellers	CCC	50 °C	-25 °C	-25 °C	50 °C	440 VAC	3250 RPM	Polyamide (PA6) Nylon 6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 268.79

General part information

Fan Motorized Impellers, 3 Phase 440VAC Round - 221.4mm Dia Ball 4 Wire Leads with Splice Terminals
