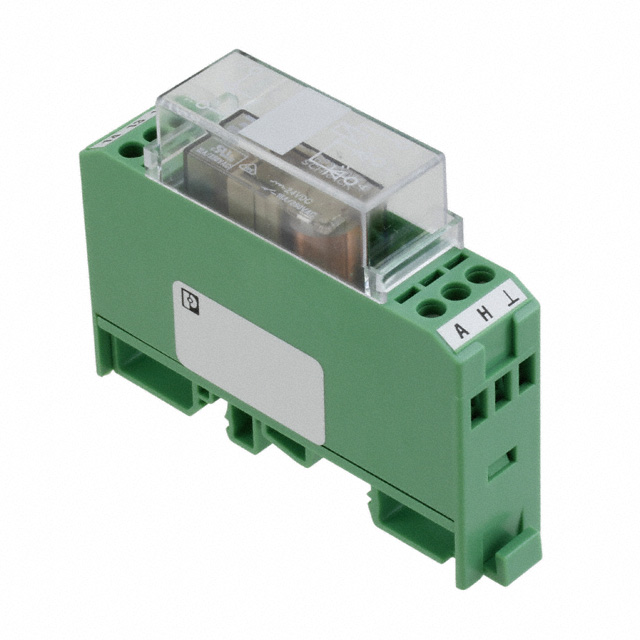

2941646

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 10A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 10A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2941646

Coil Current	23 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	9 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Operate Time	Release Time	Termination Style	Coil Current	Mounting Type	Contact Rating (Current)	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Coil Voltage	Contact Form	Switching Voltage	Features	Relay Type
Phoenix Contact 2941646	9 ms	10 ms	Screw Terminal	23 mA	DIN Rail	10 A	Non Latching	50 °C	-25 °C	Silver Tin Oxide (AgSnO)	24 VDC	SPST-NO (1 Form A)	250 VAC 250 VDC	Diode Lighted Indicator Socket Included	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail
