25642001RP2

Active

MH Connectors

25642001RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

25642001RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25642001RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Rows	Termination	Contact Type	Contact Shape	Material Flammability Rating	Insulation Color	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Fastening Type
MH Connectors 25642001RP2	Tin	0.079 in	2 mm	20	0.079 in	2 mm	Gold	Flash	Phosphor Bronze	0.118 in	3 mm	All	2	Solder	Female Socket	Square	UL94 V-0	Black	Through Hole	2.54 µm	100 µin	-40 °C	105 ░C	Receptacle	0.177 in	4.5 mm	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

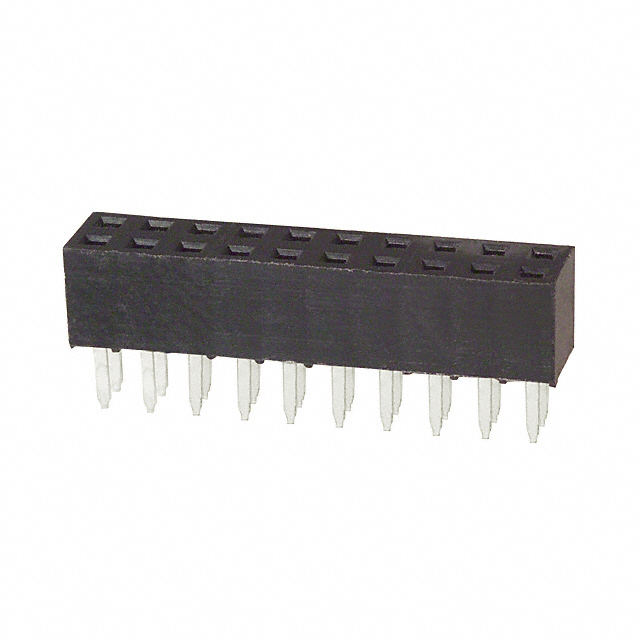

20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
