BM05B-XASS-TF

Active

JST Sales America Inc.

CONN HEADER SMD 5POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 5POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM05B-XASS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Height	Insulation Height	Termination	Connector Type	Contact Finish - Post	Number of Rows	Contact Shape	Style	Mounting Type	Features	Contact Type	Insulation Color	Insulation Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Contact Material	Voltage Rating	Fastening Type	Shrouding	Mated Stacking Heights
JST Sales America Inc. BM05B-XASS-TF	0.37 in	9.4 mm	Solder	Header	Tin	1	Circular	Board to Cable/Wire	Surface Mount	Solder Retention	Male Pin	Natural	Nylon Polyamide (PA)	2.5 mm	0.098 in	3 A	-25 °C	85 °C	UL94 V-0	All	Copper Alloy	250 VDC	Locking Ramp	Shrouded - 4 Wall	11.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

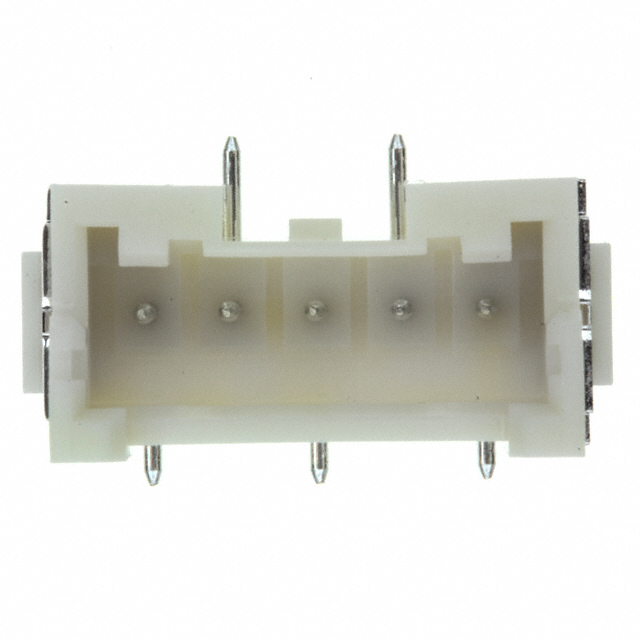

Connector Header Surface Mount 5 position 0.098" (2.50mm)
