2903067

Active

Phoenix Contact

DFLK-D25 SUB/F/FKCT

Search across all available documentation for this part.

Active

Phoenix Contact

DFLK-D25 SUB/F/FKCT

Technical Specifications

Parameters and characteristics for this part

Specification	2903067

Convert From (Adapter End)	2 Rows, 25 Pos
Convert From (Adapter End)	Terminal Blocks, Screwless Connection
Convert To (Adapter End)	2 Rows, 25 positions
Convert To (Adapter End)	D-Sub, Female Sockets
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	12 AWG

Part	Wire Gauge [Min]	Wire Gauge [Max]	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Type	Convert From (Adapter End)
Phoenix Contact 2280323	12 AWG	24 AWG	2 Rows 25 positions	D-Sub Female Sockets	2 Rows 25 Pos Screw Connection Terminal Blocks	Feed Through Panel Mount
Phoenix Contact 2280310	12 AWG	24 AWG		2 Rows 25 Pos D-Sub Male Pins	2 Rows 25 Pos Screw Connection Terminal Blocks	Feed Through Panel Mount
Phoenix Contact 2903055	12 AWG	24 AWG		2 Rows 25 Pos D-Sub Male Pins	Screwless Connection Terminal Blocks	Feed Through Panel Mount	2 Rows 25 Pos
Phoenix Contact 2903067	12 AWG	30 AWG	2 Rows 25 positions	D-Sub Female Sockets	Screwless Connection Terminal Blocks	Feed Through Panel Mount	2 Rows 25 Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

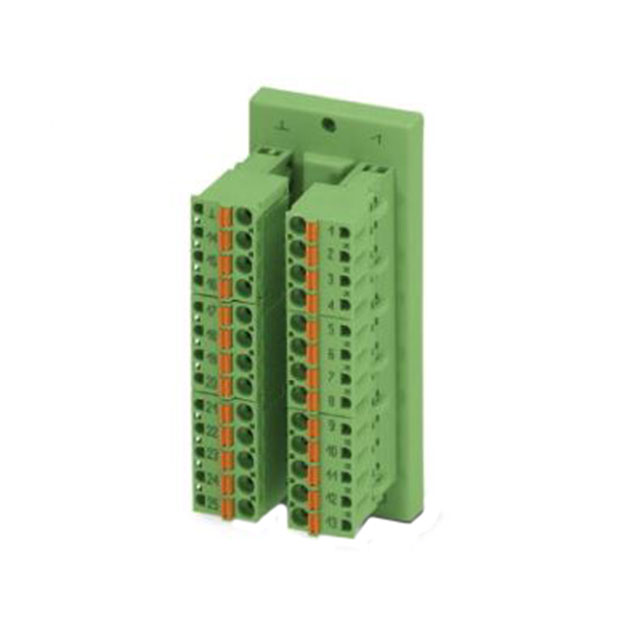

Adapter Terminal Blocks, Screwless Connection, 25 Pos, 2 Rows To D-Sub, Female Sockets, 25 Pos, 2 Rows
