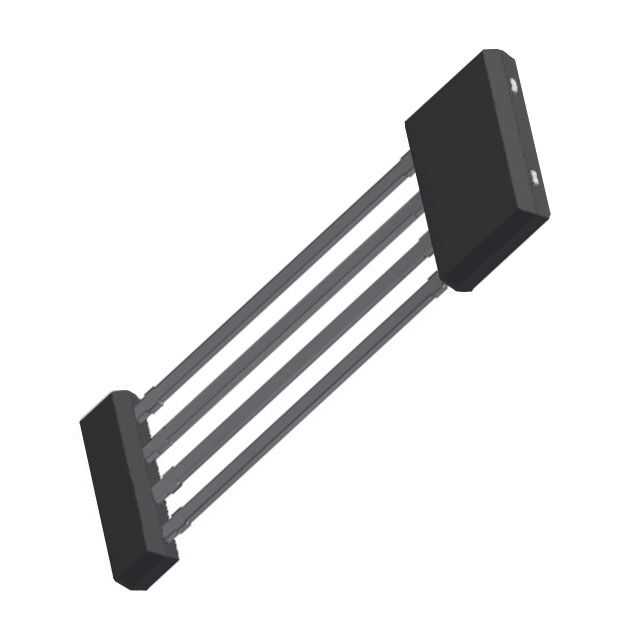

ACS70311LKTATN-010B5-C

Active

Allegro MicroSystems

HIGHEST ACCURACY PROGRAMMABLE LI

Search across all available documentation for this part.

Active

Allegro MicroSystems

HIGHEST ACCURACY PROGRAMMABLE LI

Technical Specifications

Parameters and characteristics for this part

Specification	ACS70311LKTATN-010B5-C

Axis	Single
Bandwidth	240 kHz
Current - Output (Max) [Max]	10 mA
Current - Supply (Max) [Max]	15 mA
Features	Temperature Compensated, Programmable
Mounting Type	Through Hole
Output Type	Analog Voltage
Package / Case	4-SSIP Module
Supplier Device Package	4-SIP
Technology	Hall Effect
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Mounting Type	Current - Supply (Max) [Max]	Package / Case	Bandwidth	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Axis	Features	Current - Output (Max) [Max]	Supplier Device Package	Output Type
Allegro MicroSystems ACS70311LKTATN-001B5-C	Through Hole	15 mA	4-SSIP Module	240 kHz	4.5 V	5.5 V	Hall Effect	Single	Programmable Temperature Compensated	10 mA	4-SIP	Analog Voltage
Allegro MicroSystems ACS70311LKTATN-005B5-C	Through Hole	15 mA	4-SSIP Module	240 kHz	4.5 V	5.5 V	Hall Effect	Single	Programmable Temperature Compensated	10 mA	4-SIP	Analog Voltage
Allegro MicroSystems ACS70311LKTATN-2P5B5-C	Through Hole	15 mA	4-SSIP Module	240 kHz	4.5 V	5.5 V	Hall Effect	Single	Programmable Temperature Compensated	10 mA	4-SIP	Analog Voltage
Allegro MicroSystems ACS70311LKTATN-010B5-C	Through Hole	15 mA	4-SSIP Module	240 kHz	4.5 V	5.5 V	Hall Effect	Single	Programmable Temperature Compensated	10 mA	4-SIP	Analog Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Single Axis 4-SIP
