EFM-471AL
ActiveEast Electronics

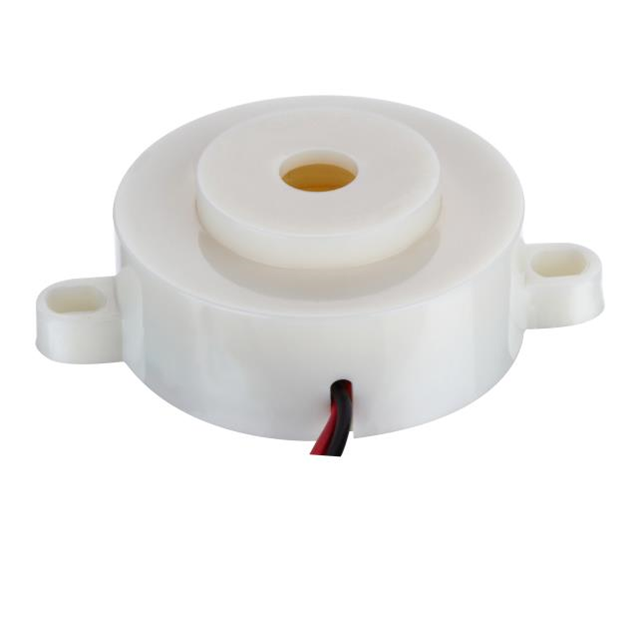

BUZZER 24V 37.8MM WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM-471AL
ActiveEast Electronics
BUZZER 24V 37.8MM WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-471AL |
|---|---|
| Frequency | 3.7 kHz |
| Height - Seated (Max) | 14.3 mm |
| Height - Seated (Max) [Max] | 0.563 in |
| Mounting Type | Wire Lead |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.488 in |
| Size / Dimension [diameter] | 37.8 mm |
| Sound Pressure Level (SPL) | 90 dB |
| Termination | Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 30 V |
| Voltage Range [Min] | 18 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.96 | |
| 100 | $ 1.95 | |||
| 1000 | $ 1.60 | |||
Description
General part information
EFM-471 Series
Buzzers 24 V 20mA 3.7kHz 90dB @ 24V, 30cm Wire Lead Wire Leads
