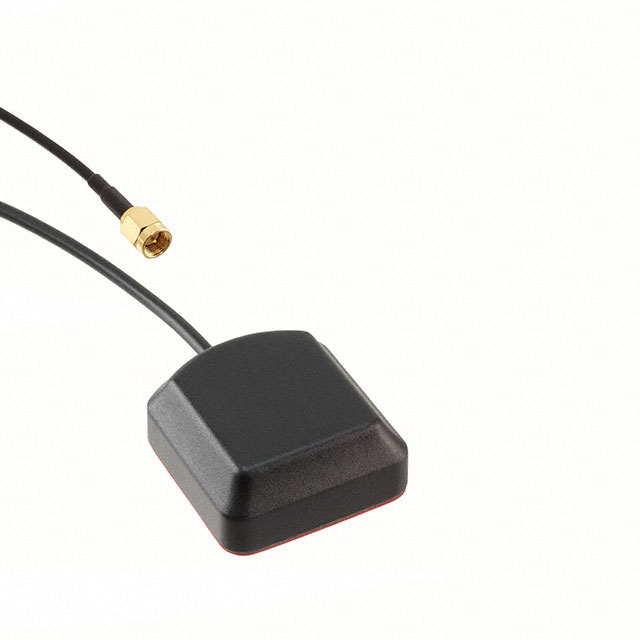

ALPHA19/3M/SMAM/S/S/17 - ALPHA4A/5M/SMAM/S/S/26

ALPHA19/3M/SMAM/S/S/17

Active

Siretta Ltd

RF ANT 1.575GHZ MOD SMA MALE ADH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet What Parameters are Important for Cellular Antenna Evaluation?

ALPHA19/3M/SMAM/S/S/17 - ALPHA4A/5M/SMAM/S/S/26

ALPHA19/3M/SMAM/S/S/17

Active

Siretta Ltd

RF ANT 1.575GHZ MOD SMA MALE ADH

Deep-Dive with AI

DocumentsDatasheet What Parameters are Important for Cellular Antenna Evaluation?

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALPHA19/3M/SMAM/S/S/17

Antenna Type	Module
Applications	GPS
Frequency (Center/Band)	1.575 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Gain	1 dBi
Height (Max) [Max]	12 mm
Height (Max) [Max]	0.472 in
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands	1
RF Family/Standard	Navigation
VSWR	1.5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.51
		10	$ 18.85
		30	$ 18.07
		100	$ 15.92
		250	$ 15.14
		500	$ 14.16
LCSC	Piece	1	$ 33.52
		200	$ 13.38
		500	$ 12.93
		1000	$ 12.71

Description

General part information

ALPHA19 Series

RF ANTENNA GPS Module SMA Male Adhesive

Documents

Technical documentation and resources

Datasheet

What Parameters are Important for Cellular Antenna Evaluation?

Related Document

ALPHA19 Series

Part	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	RF Family/Standard	Ingress Protection	Mounting Type	Number of Bands	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	VSWR	Gain	Applications
Siretta Ltd ALPHA19/3M/SMAM/S/S/17	Module	2 GHz	1 GHz	UHF	Navigation	IP67	Adhesive	1	1.575 GHz	12 mm	0.472 in	1.5	1 dBi	GPS
