Q8R3BXXHG110E

Active

APEM

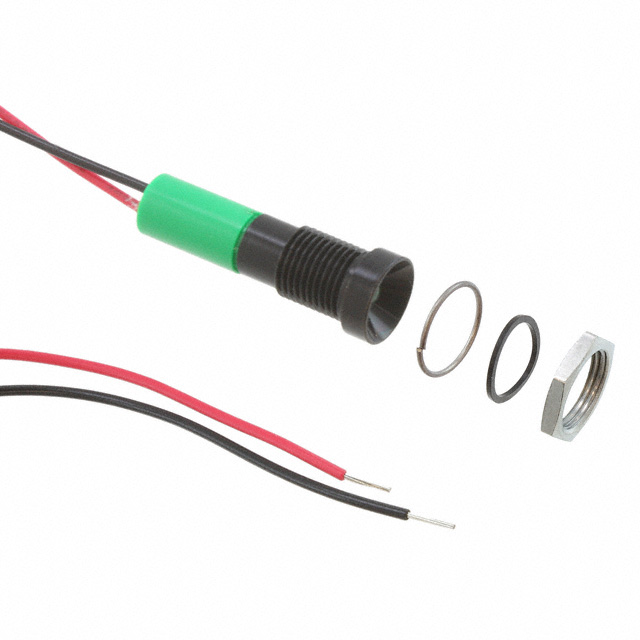

LED PMI RECESSED 110VAC GREEN

Search across all available documentation for this part.

Active

APEM

LED PMI RECESSED 110VAC GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	Q8R3BXXHG110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Green
Lens Color	Green
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	1900 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Lens Transparency	Viewing Angle	Current	Lens Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Type	Millicandela Rating	Ingress Protection	Ratings	Lamp Color	Lens Style	Voltage	Lens Size	Lens Size	Termination Style
APEM Q8R3BXXHG110E	Diffused	100 °	6 mA	Green	0.31 in	7.87 mm	Round	LED	1900 mcd	IP67	AC	Green	Round with Domed Top	110 V	T-1 3/4	5 mm	Wire Leads - 7.87" (200.00mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 100° 110V 6mA Wire Leads - 7.87" (200.00mm)

Technical documentation and resources
