TPT5609-C-AP

Obsolete

Micro Commercial Components

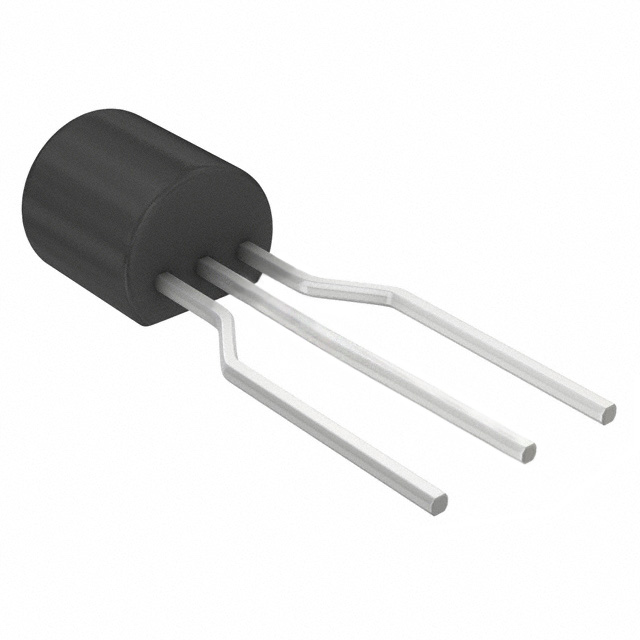

TRANS NPN 20V 1A TO92

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

TRANS NPN 20V 1A TO92

Technical Specifications

Parameters and characteristics for this part

Specification	TPT5609-C-AP

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120 hFE
Frequency - Transition	190 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-226-3, TO-92-3
Power - Max [Max]	750 mW
Supplier Device Package	TO-92
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Transistor Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Power - Max [Max]	Mounting Type	Package / Case	Vce Saturation (Max) @ Ib, Ic
Micro Commercial Components TPT5609-C-AP	20 V	120 hFE	1 µA	TO-92	1 A	NPN	-55 °C	150 °C	190 MHz	750 mW	Through Hole	TO-226-3 TO-92-3	500 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 20 V 1 A 190MHz 750 mW Through Hole TO-92
