09400160504

LTB

HARTING Technology Group

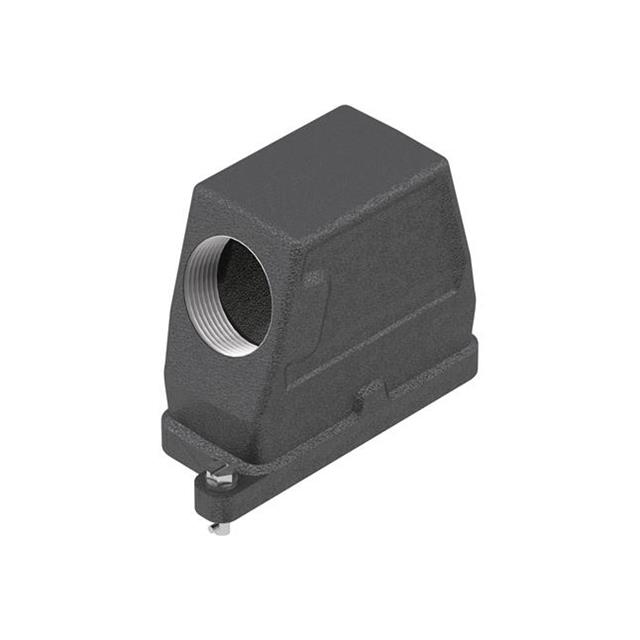

CONN HOOD SIDE ENTRY SZ16B PG36

Search across all available documentation for this part.

LTB

HARTING Technology Group

CONN HOOD SIDE ENTRY SZ16B PG36

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Housing Color	Thread Size	Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Housing Finish	Style	Housing Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size
HARTING Technology Group 09400160381
HARTING Technology Group 09400160413	Screw Locks on Hood	Black	PG29	16 B	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Powder Coated	Top Entry	Aluminum Die Cast	Hood	125 °C	-40 °C
HARTING Technology Group 09400160402	Screw Locks on Hood	Black	PG21	16 B	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Powder Coated	Top Entry	Aluminum Die Cast	Hood	125 °C	-40 °C
HARTING Technology Group 09400160451	Screw Locks on Hood	Black			5.512 in	165 mm	2.283 "	6.496 in	140 mm	58 mm	Powder Coated	Top Entry	Aluminum Die Cast	Hood	125 °C	-40 °C	Corrosion Resistant	16HPR
HARTING Technology Group 09400160504	Screw Locks on Hood	Black	PG36	16 B	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Powder Coated	Side Entry	Aluminum Die Cast	Hood	125 °C	-40 °C
HARTING Technology Group 09400160414	Screw Locks on Hood	Black	PG36	16 B	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Powder Coated	Top Entry	Aluminum Die Cast	Hood	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 142.65

General part information

Hood Connector Side Entry PG36 16B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
