2109-7511-000

Active

Radiall USA, Inc.

SMB M STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M STR BHD

Technical Specifications

Parameters and characteristics for this part

Specification	2109-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mounting Type	Dielectric Material	Connector Type	Center Contact Plating	Housing Color	Fastening Type	Contact Termination	Connector Style	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Center Contact Material	Impedance	Body Material	Number of Ports	Frequency - Max [Max]	Includes	Mating Cycles
Radiall USA, Inc. 2109-7511-000	Panel Mount Through Hole	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Gold	Silver	Snap-On	Solder	SMB	Solder	Nickel	-65 ░C	165 °C	Bulkhead - Front Side Nut	Brass	50 Ohms	Brass	1	4 GHz	1 Connector 1 Lockwasher 1 Nut	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

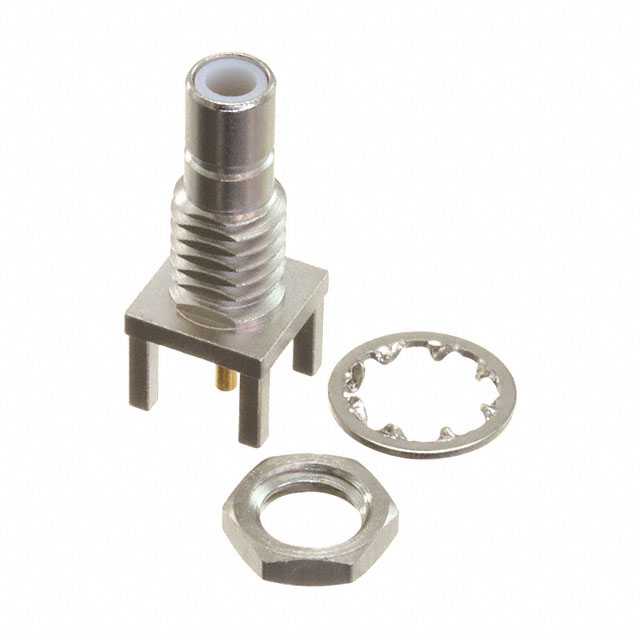

SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole Solder
