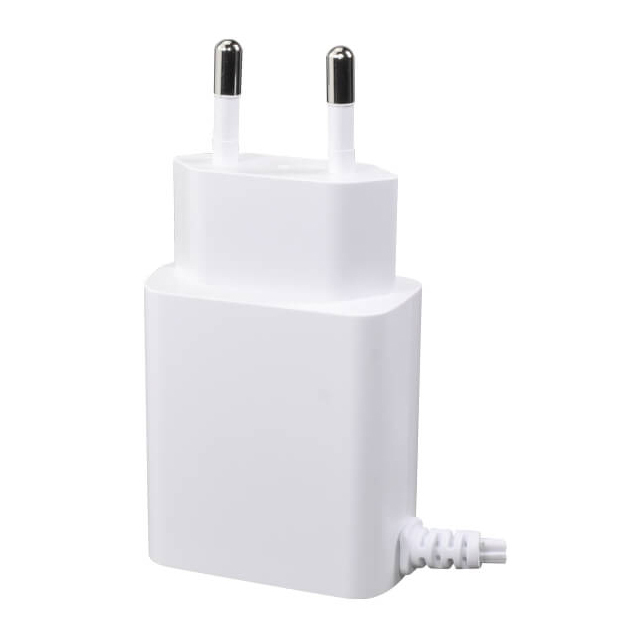

SWI10B-5-EW-P6

Active

CUI Inc.

PLUG-IN ADAPTER SINGLE-OUT 5V 2A 10W BOX

Deep-Dive with AI

Search across all available documentation for this part.

SWI10B-5-EW-P6

Active

CUI Inc.

PLUG-IN ADAPTER SINGLE-OUT 5V 2A 10W BOX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI10B-5-EW-P6

Applications	ITE (Commercial)
Approval Agency	CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	10 W
Region Utilized	Europe
Size / Dimension [x]	3.31 "
Size / Dimension [x]	84.2 mm
Size / Dimension [y]	0.89 in
Size / Dimension [y]	22.5 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

SWI10 Series

...

Part	Polarization	Applications	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	No Load Power Consumption [Max]	Output Connector [diameter]	Output Connector [z]	Output Connector	Operating Temperature [Max]	Input Type	Form	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Current - Output (Max) [Max]	Efficiency	Voltage - Output	Approval Agency	Cord Length	Cord Length	Input Connector	Weight	Weight	Output Connector [x]	Output Connector [y]
CUI Inc. SWI10B-12-EB-P7R	Positive Center	ITE (Commercial)	12 W	90 VAC	264 VAC	Europe	75 mW	1.35 mm 3.5 mm	9.5 mm	Barrel Plug R/A	40 °C	Fixed Blade	Wall Mount (Class II)	3.31 "	1.61 "	0.89 in	22.5 mm	84.2 mm	41 mm	62368-1	1 A	Level VI	12 V	CE	1.5 m	59 in	CEE 7/16
CUI Inc. SWI10-5-N-P5	Positive Center	ITE (Commercial)	10 W	90 VAC	264 VAC	North America	75 mW	2.1 mm 5.5 mm		Barrel Plug	40 °C	Fixed Blade	Wall Mount (Class II)	2.72 "	3.06 "	1.13 in	28.8 mm	69 mm	77.7 mm	60950-1 C22.2 No. 60950-1	2 A	CoC Tier 2 Level VI	5 V	CSA FCC PSE UL	1.5 m	59 in	NEMA 1-15P	90.26 g	0.199 lb	9.5 mm
CUI Inc. SWI10B-5-EW-P6	Positive Center	ITE (Commercial)	10 W	90 VAC	264 VAC	Europe	75 mW	2.5 mm 5.5 mm		Barrel Plug	40 °C	Fixed Blade	Wall Mount (Class II)	3.31 "	1.61 "	0.89 in	22.5 mm	84.2 mm	41 mm	62368-1	2 A	Level VI	5 V	CE	1.5 m	59 in	CEE 7/16			9.5 mm
CUI Inc. SWI10B-12-NB-P6R	Positive Center	ITE (Commercial)	12 W	90 VAC	264 VAC	North America	75 mW	2.5 mm 5.5 mm		Barrel Plug R/A	40 °C	Fixed Blade	Wall Mount (Class II)	2.48 "	1.61 "	0.89 in	22.5 mm	63.1 mm	41 mm	62368-1	1 A	Level VI	12 V	cULus FCC	1.5 m	59 in	NEMA 1-15P			9.5 mm
CUI Inc. SWI10B-12-EB-P6	Positive Center	ITE (Commercial)	12 W	90 VAC	264 VAC	Europe	75 mW	2.5 mm 5.5 mm		Barrel Plug	40 °C	Fixed Blade	Wall Mount (Class II)	3.31 "	1.61 "	0.89 in	22.5 mm	84.2 mm	41 mm	62368-1	1 A	Level VI	12 V	CE	1.5 m	59 in	CEE 7/16			9.5 mm
CUI Inc. SWI10B-12-NB-P5R	Positive Center	ITE (Commercial)	12 W	90 VAC	264 VAC	North America	75 mW		9.5 mm	Barrel Plug R/A	40 °C	Fixed Blade	Wall Mount (Class II)	2.48 "	1.61 "	0.89 in	22.5 mm	63.1 mm	41 mm	62368-1	1 A	Level VI	12 V	cULus FCC	1.5 m	59 in	NEMA 1-15P			2.1 mm	5.5 mm
CUI Inc. SWI10B-5-EW-MUB		ITE (Commercial)	10 W	90 VAC	264 VAC	Europe	75 mW			USB Micro	40 °C	Fixed Blade	Wall Mount (Class II)	3.31 "	1.61 "	0.89 in	22.5 mm	84.2 mm	41 mm	62368-1	2 A	Level VI	5 V	CE	1.5 m	59 in	CEE 7/16
CUI Inc. SWI10B-12-EW-MUB		ITE (Commercial)	12 W	90 VAC	264 VAC	Europe	75 mW			USB Micro	40 °C	Fixed Blade	Wall Mount (Class II)	3.31 "	1.61 "	0.89 in	22.5 mm	84.2 mm	41 mm	62368-1	1 A	Level VI	12 V	CE	1.5 m	59 in	CEE 7/16
CUI Inc. SWI10-5-N-P7R	Positive Center	ITE (Commercial)	10 W	90 VAC	264 VAC	North America	75 mW	1.3 mm 3.5 mm	9.5 mm	Barrel Plug R/A	40 °C	Fixed Blade	Wall Mount (Class II)	2.72 "	3.06 "	1.13 in	28.8 mm	69 mm	77.7 mm	60950-1 C22.2 No. 60950-1	2 A	CoC Tier 2 Level VI	5 V	CSA FCC PSE UL	1.5 m	59 in	NEMA 1-15P	90.26 g	0.199 lb
CUI Inc. SWI10B-12-NB-P5	Positive Center	ITE (Commercial)	12 W	90 VAC	264 VAC	North America	75 mW	2.1 mm 5.5 mm		Barrel Plug	40 °C	Fixed Blade	Wall Mount (Class II)	2.48 "	1.61 "	0.89 in	22.5 mm	63.1 mm	41 mm	62368-1	1 A	Level VI	12 V	cULus FCC	1.5 m	59 in	NEMA 1-15P			9.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	480	$ 7.36

Description

General part information

SWI10 Series

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
